2080 LP
Wheel loader

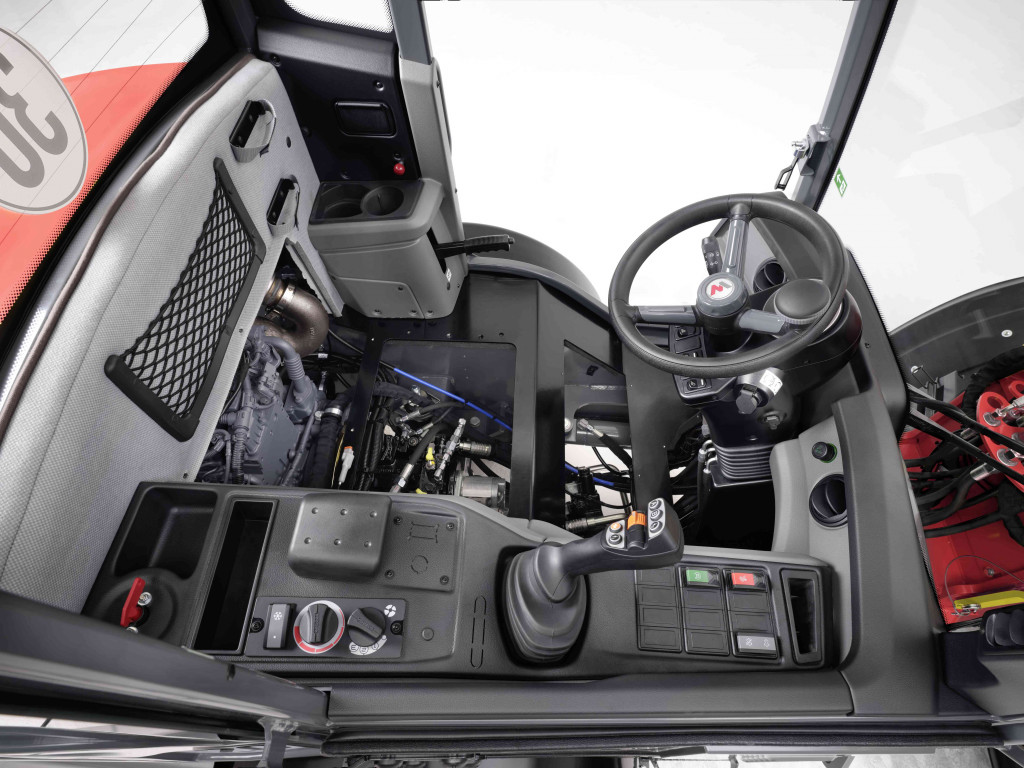

LP in Weidemann means "low position." Thanks to the low position of the driver's position and the seat, the machine has a low design height, so that it can pass smoothly through low steps. In addition, this allows the operator to comfortably access the machine and moves the center of gravity closer to the ground.
Share:
Print:
Do you want us to help you to search?
If you prefer us to find the most suitable machine for your needs, you just have to ask us. Together we will find YOUR MACHINE!!
Send inquiry
| Engine data | |||
|---|---|---|---|
| Standard | Optional | ||
| Manufacturer | Deutz | Deutz | |
| Model | TD 2.9 L4 S5 | TCD 2.9 L4 S5 | |
| Engine output [kW / CV] | 45 / 61 | 55,4 / 75 | |
| At maximum rpm [rpm] | 2300 | 2300 | |
| Cylinders [units] | 4 | 4 | |
| Displacement [cm3] | 2900 | 2900 | |
| Cooling | Water | Water + Charge air | |
| Exhaust standard | Stage V | Stage V | |
| Exhaust after-treatment | DPF1 + DOC2 | DPF1 + DOC2 | |
1 DPF: Diesel particulate filter
2 DOC: Diesel oxidation catalytic converter
| Speed | ||
|---|---|---|
| Level 1 [km/h] | 7 | |
| Level 2 [km/h] | 20 | |
| Optional [km/h] | 28 | |
| Operating data | ||
|---|---|---|
| Operating weight [kg] | 3900 | |
| Tipping loads* | ||
|---|---|---|
| (According ISO 14397 - EN474-3) | ||
| With bucket straight [kg] | 2898 | |
| With bucket articulated [kg] | 2422 | |
| With pallet fork straight [kg] | 2578 | |
| With pallet fork articulated [kg] | 2168 | |
* Horizontal loading frame
| Hydraulic | ||
|---|---|---|
| Kinematics | PZ | |
| Lift cylinder [units] | 2 | |
| Tipping cylinder [units] | 1 | |
| Work hydraulics pressure [bar] | 210 | |
| Work hydraulics discharge volume [l/min] | 57,5 | |
| Driving hydraulics working pressure [bar] | 450 | |
| Steering system | ||
|---|---|---|
| Steering | Hydraulic articulated pendulum steering | |
| Articulation angle [º] | 45 | |
| Oscillating angle [º] | ± 12 | |
| Steering cylinder [units] | 1 | |
| Filling volumes | ||
|---|---|---|
| Fuel tank capacity [l] | 65 | |
| Hydraulic oil tank [l] | 50 | |
| Electrical system | ||
|---|---|---|
| Operating voltage [V] | 12 | |
| Battery isolator switch | ||
| Dimensions | ||
|---|---|---|
| Overall length [mm] | 5160 | |
| Total length without bucket [mm] | 4190 | |
| Center of axle up to the bucket pivot point [mm] | 680 | |
| Wheel base [mm] | 2050 | |
| Rear overhang [mm] | 1420 | |
| Height of low operator's canopy [mm] | 2190 | |
| Height of high operator's canopy [mm] | 2350 | |
| Height of low cabin [mm] | 2190 | |
| Height of high cabin [mm] | 2400 | |
| Total working height [mm] | 3900 | |
| Max. height of the bucket pivot point [mm] | 3240 | |
| Overhead loading height [mm] | 2930 | |
| Dumping height [mm] | 2390 | |
| Scraping depth [mm] | 90 | |
| Total width [mm] | 1415 | |
| Lane width [mm] | 1125 | |
| Ground clearance [mm] | 294 | |
| Maximum radius [mm] | 3510 | |
| Radius on the outer edge [mm] | 3219 | |
| Inside radius [mm] | 1745 | |
| Rollback angle at max. lift height [º] | 54 | |
| Max. angle for bucket emptying [º] | 40 | |
| Rollback angle on the ground [º] | 48 | |
