RG
Tiller

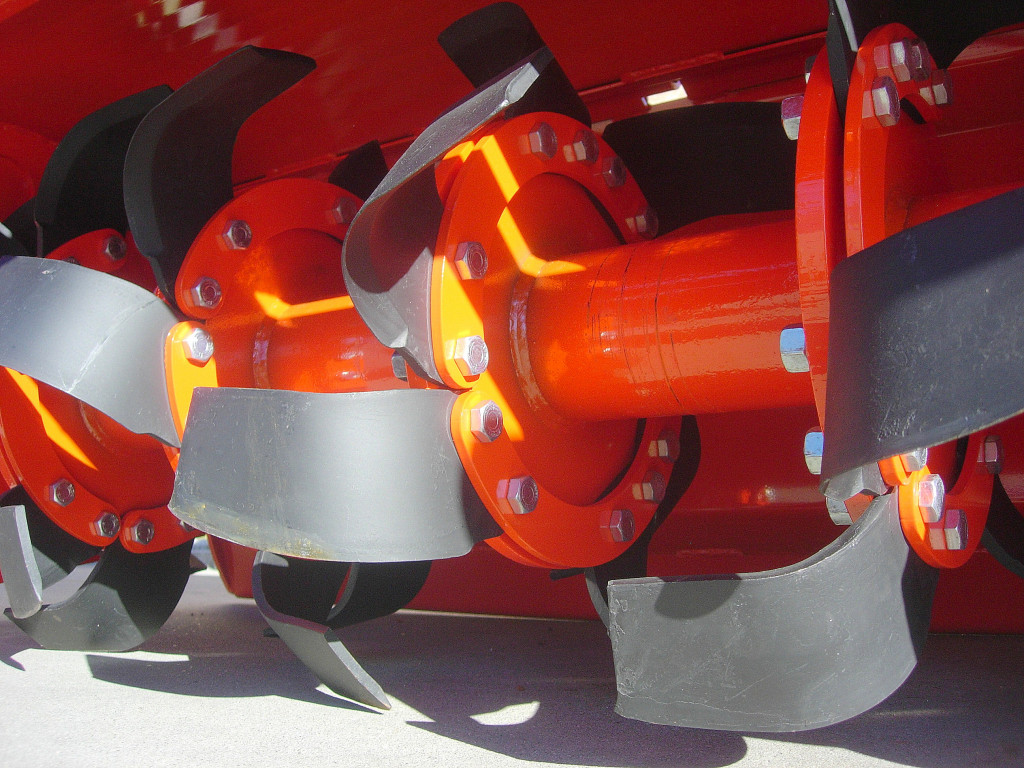

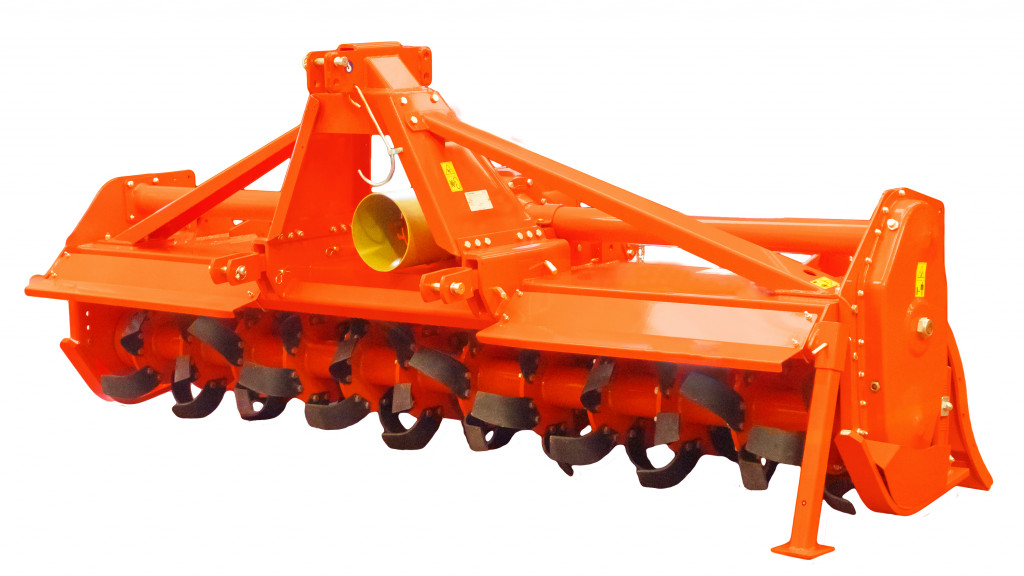

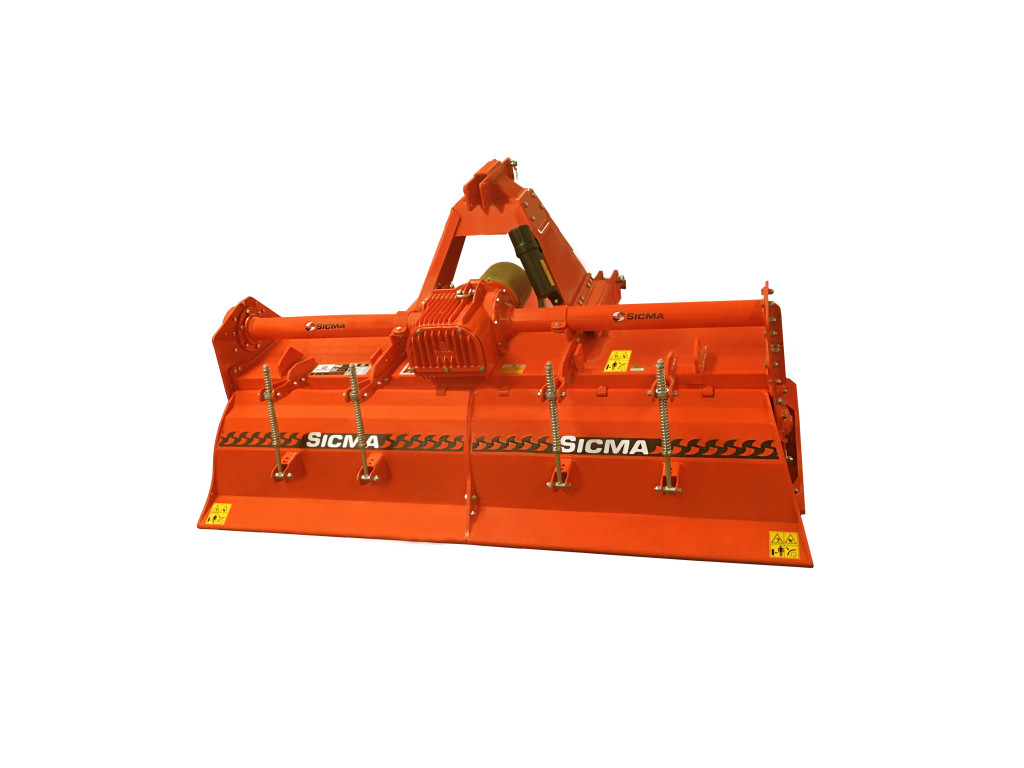

The RG fixed tiller can be chosen in working widths ranging from 230 to 305 cm. This is a particularly heavy machine, with a double plate rotor and 2+2 -speed gearbox (540/1000) with lateral transmission by gears in oil bath. The box-shaped chassis, the powder coating, and the permanent "Long Life" closure system on the rotor support bearings, guarantee the strength and durability of the machine, making it suitable for the most intense professional tasks in the worst conditions.
Share:
Print:
Do you want us to help you to search?
If you prefer us to find the most suitable machine for your needs, you just have to ask us. Together we will find YOUR MACHINE!!
Send inquiry
| Machine data | |||||
|---|---|---|---|---|---|
| Model | RG 230 | RG 255 | RG 280 | RG 305 | |
| Working width [cm] | 230 | 255 | 280 | 305 | |
| Total width [cm] | 252 | 277 | 302 | 327 | |
| Distance from hitch point to side -left. / right- [cm] | 115 / 115 | 127,5 / 127,5 | 140 / 140 | 152,5 / 152,5 | |
| Discs [pcs.] | 9 | 10 | 11 | 12 | |
| Blades [pcs.] | 54 | 60 | 66 | 72 | |
| Required power [HP] | 90 - 160 | 90 - 160 | 90 - 160 | 90 - 160 | |
| PTO [rpm] | 540 - 1000 | 540 - 1000 | 540 - 1000 | 540 - 1000 | |
| Weight [kg] | 880 | 970 | 1000 | 1032 | |
