2060T

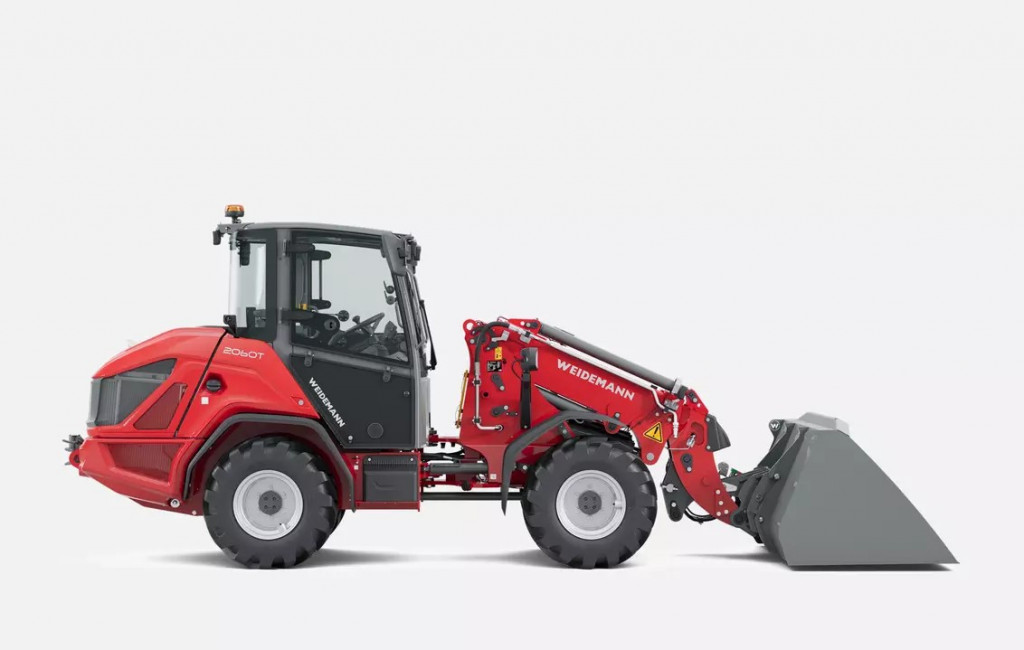

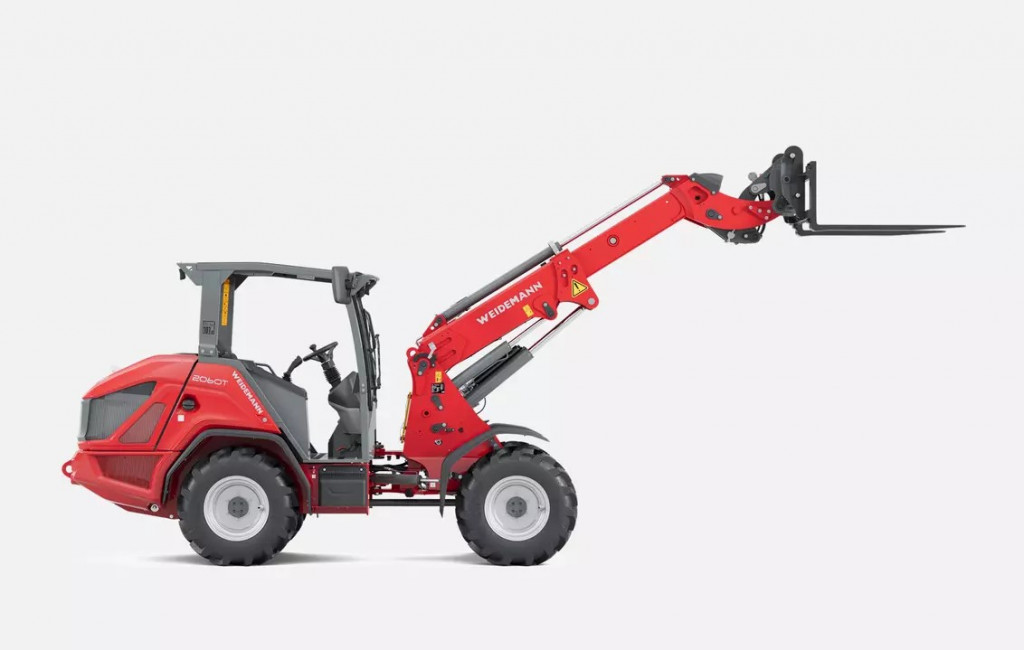

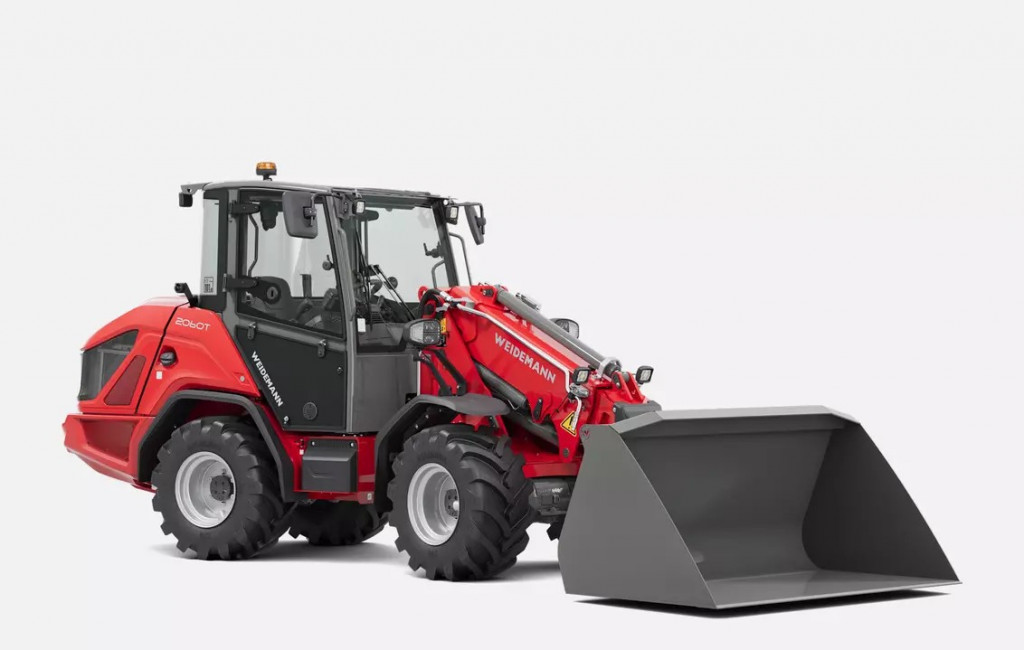

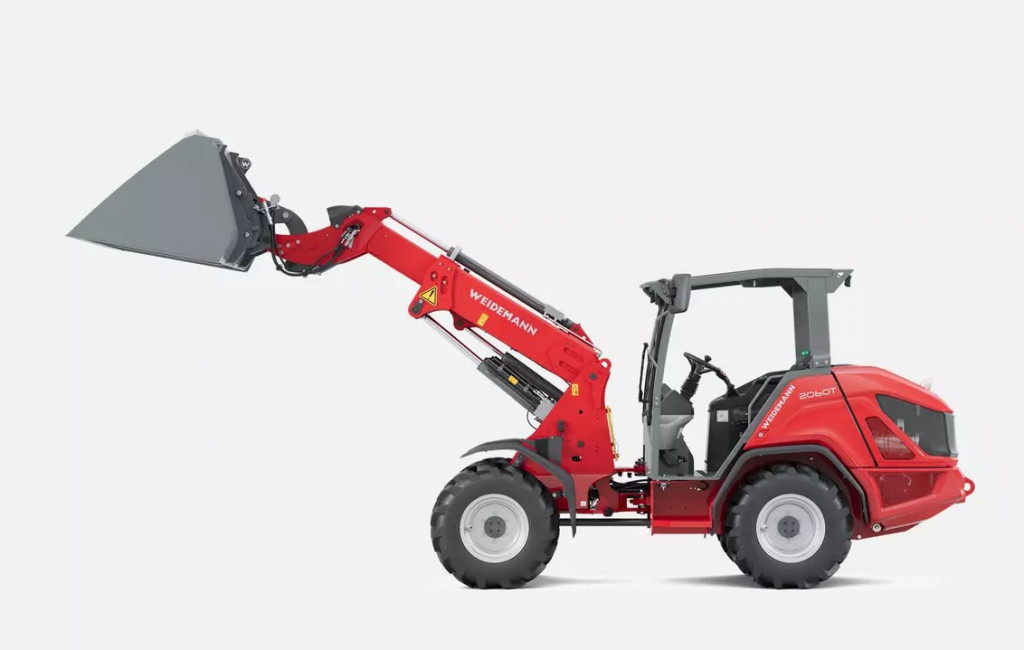

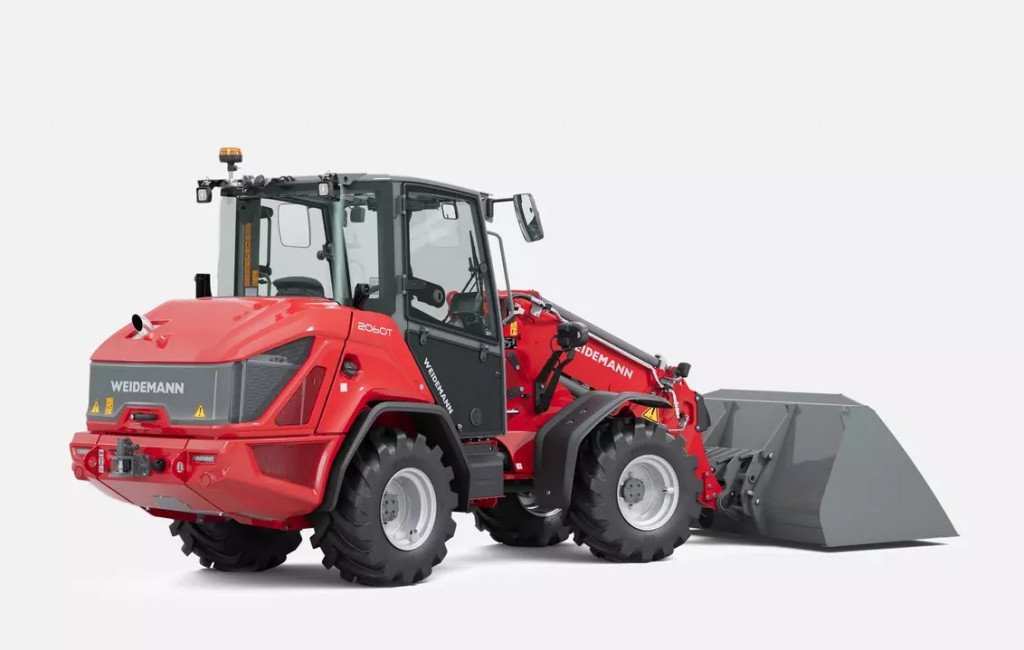

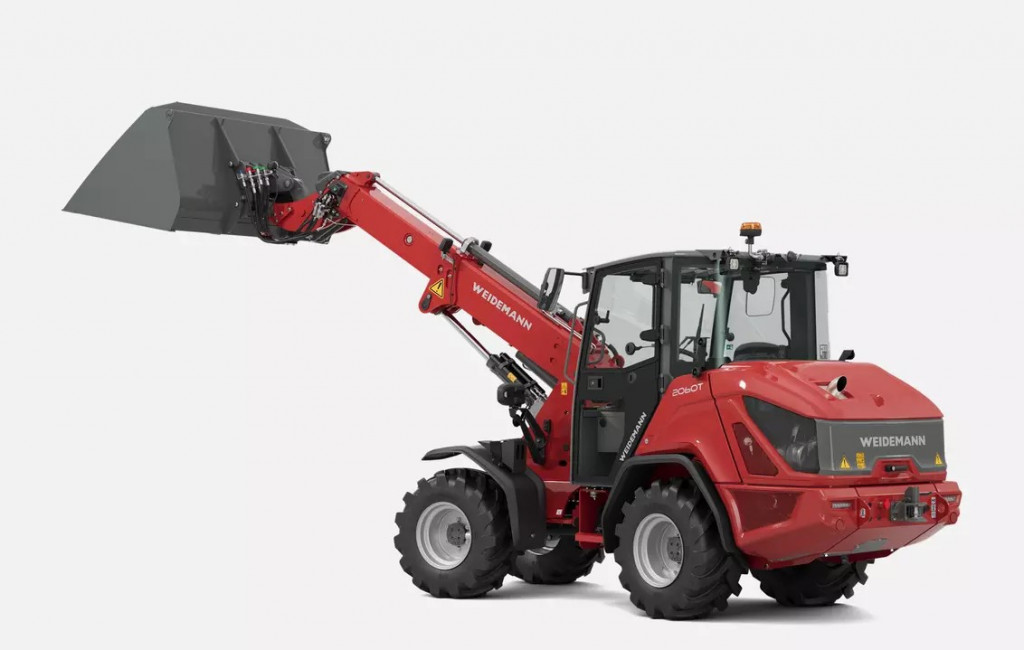

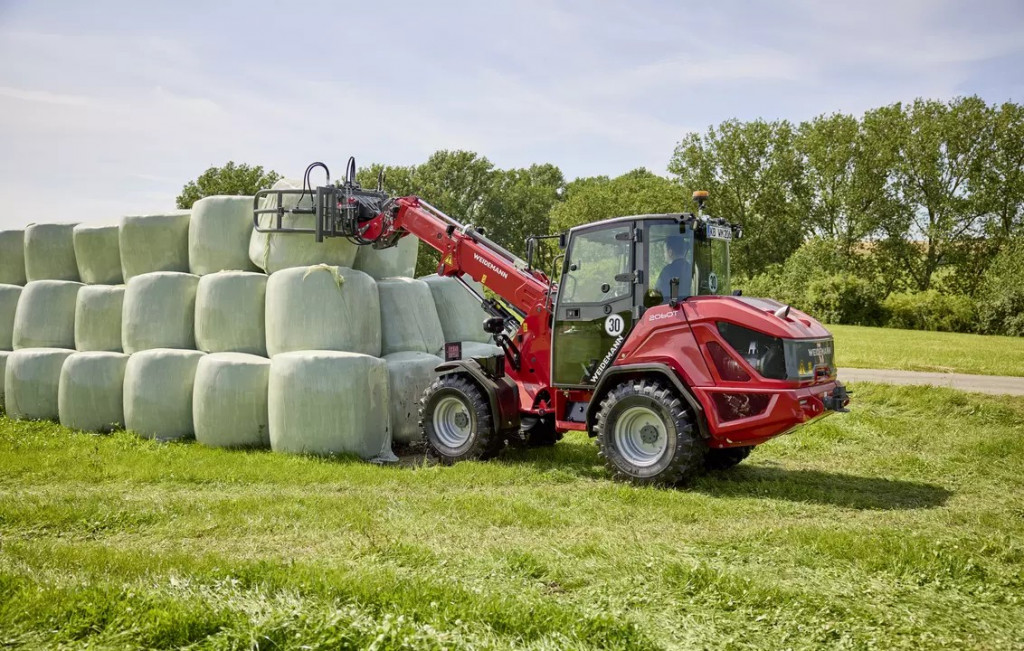

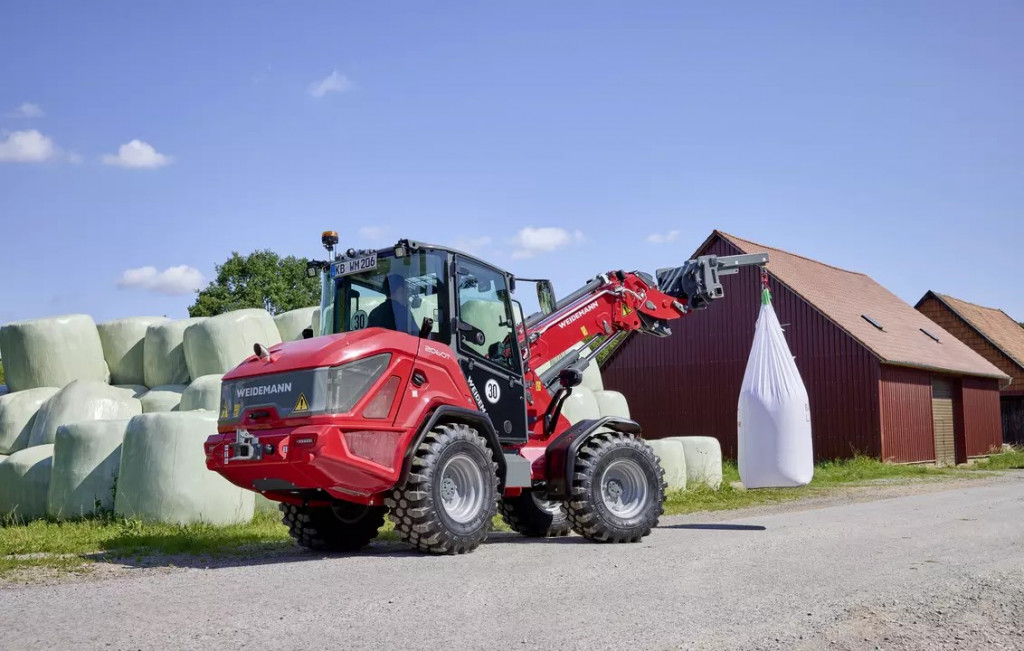

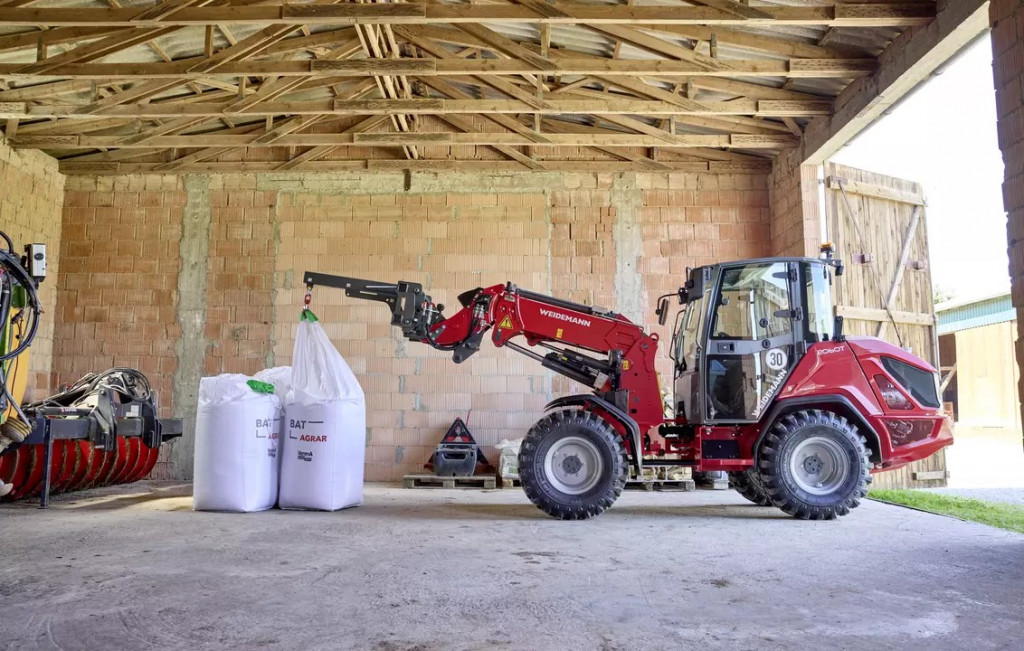

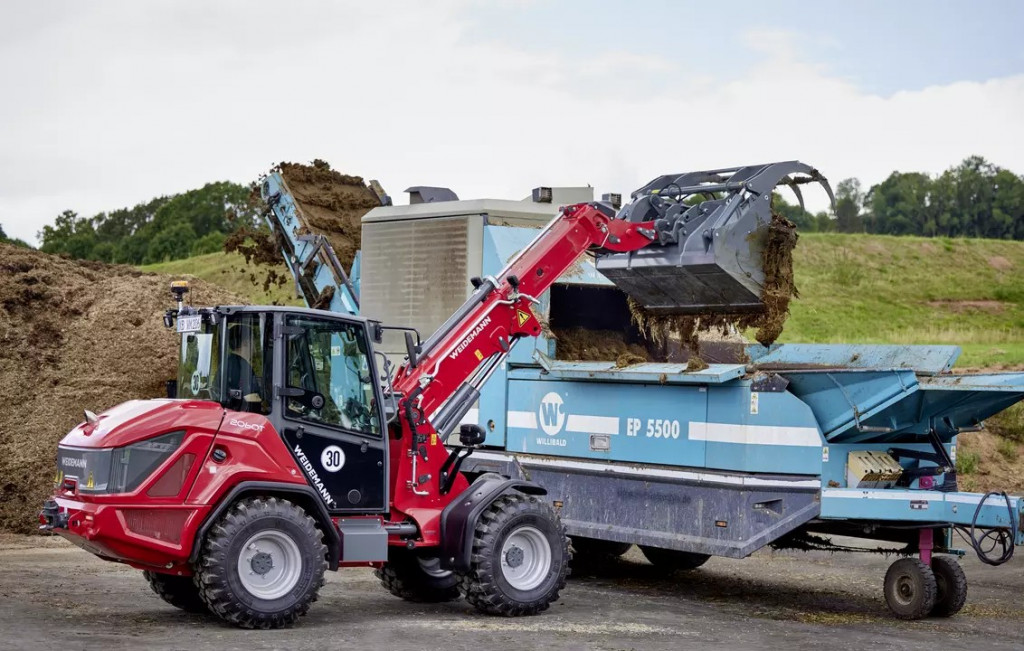

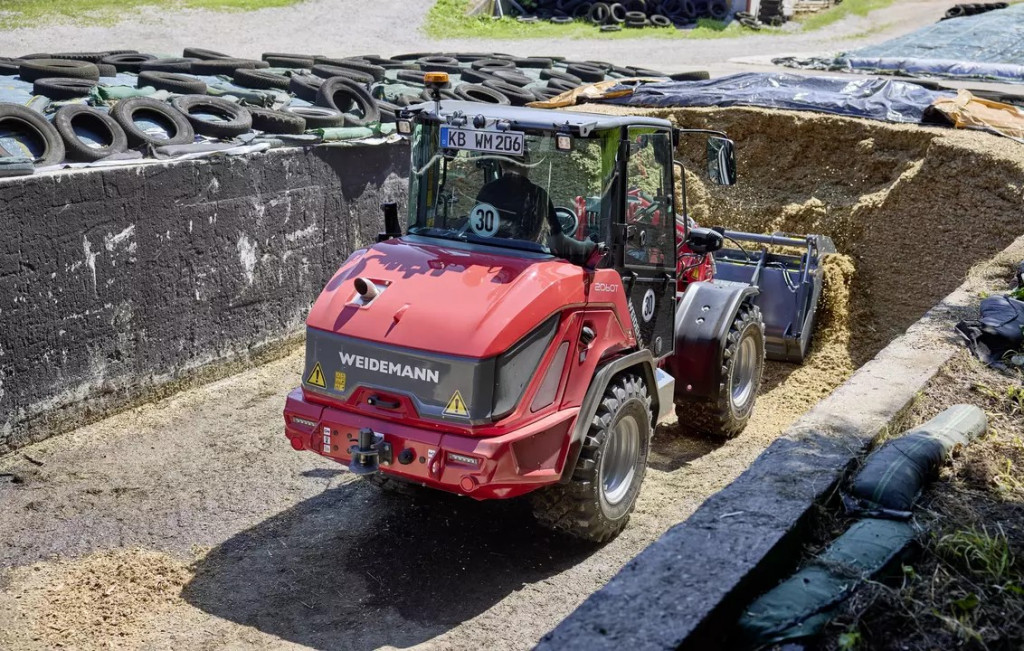

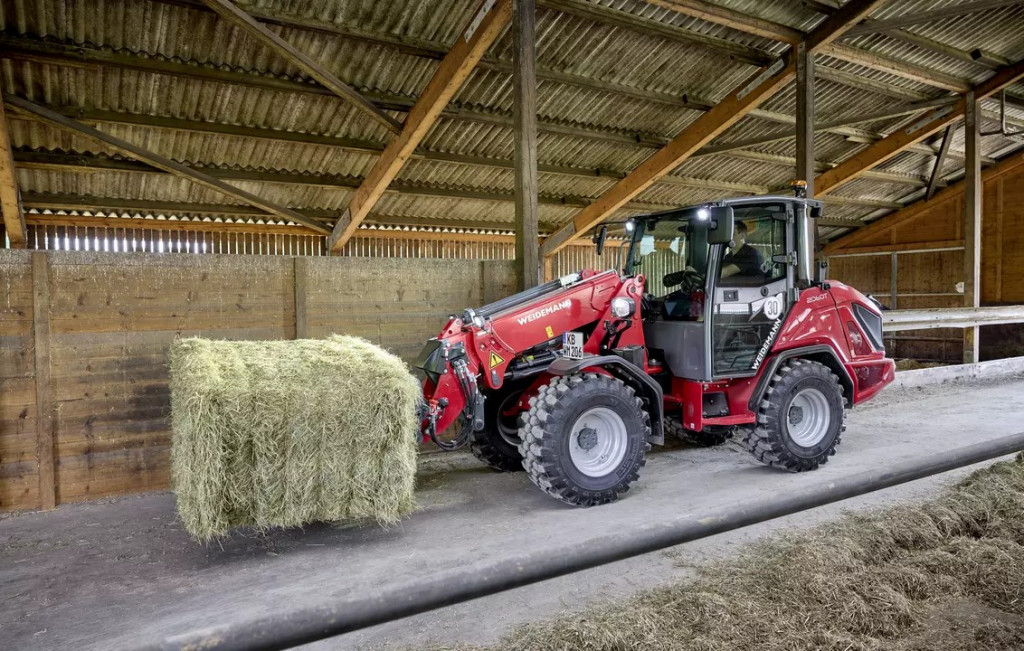

2060T telescopic wheel loader
Next level: The 2060T telescopic wheel loader achieves a high lifting height thanks to its robust telescopic boom. It offers comprehensive standard equipment and advanced technology. Its attractive price-performance ratio makes this machine the ideal entry-level model in the telescopic wheel loader category. Thanks to its wide range of options, the machine can be perfectly adapted to your individual requirements and needs. A protective roof for the operator (choosable between low and high) is standard, and a comfortable cab with excellent ergonomics and all-round visibility is available as an option. The 60 Series features the following features: easy entry and exit, electronic ecDrive with several driving modes, electric parking brake, robust center linkage with optimized hose routing, and excellent service access thanks to the transversely mounted engine and optimized component layout.
Share:
Print:
Do you want us to help you to search?
If you prefer us to find the most suitable machine for your needs, you just have to ask us. Together we will find YOUR MACHINE!!
Send inquiry
| Drive | ||
|---|---|---|
| Drive Type | ecDrive (Electronic Controlled Drive) | |
| Transmission | Hydrostatic with distribution gear and articulated axle | |
| Travel Speeds | 2 | |
| Axle | PA 1200 | |
| Standard Travel Speed | 0-20 km/h | |
| Option 1 Travel Speed | 0-30 km/h | |
| Service Brake | Drum brake (optional: multi-disc brake) | |
| Parking Brake | Drum brake (optional: multi-disc brake) | |
| Differential Lock | 100% on the front axle + rear axle | |
| Driver´s cab | ||
|---|---|---|
| Driver's cab | Protective roof for the operator (cab) | |
| Kinematics | ||
|---|---|---|
| Kinematics type | Teleskoparm (Z-Kinematik) | |
| Lift cylinder | 1 | |
| Tipping cylinder | 1 | |
| Quick-change system | Hydraulic | |
| Standard engine data | ||
|---|---|---|
| Engine Manufacturer | Kohler | |
| Engine Model | KDI 1903 TCR | |
| Number of Cylinders | 3 | |
| Engine Power | 42 | |
| Engine Power | 57 | |
| At Max. RPM | 2,600 rpm | |
| Max. Torque | 225Nm | |
| Displacement | 1,861 cm³ | |
| Coolant Type | water | |
| Emissions Standard | V | |
| Exhaust Aftertreatment | DOC/DPF | |
| Dimensions | ||
|---|---|---|
| Standard Tires | 365 / 70 R 18 BKT MP513 ET20 | |
| Overall Length | 5.590 mm | |
| Overall Length without Bucket | 4.780 mm | |
| Bucket Pivot Point (to center of axle) | 975 mm | |
| Wheelbase | 2.200 mm | |
| Rear Overhang | 1.435 mm | |
| Height with Low Operator Overhead | 2.345 mm | |
| Height with High Operator Overhead | 2.425 mm | |
| Height with Cab | 2.425 mm | |
| Seat Height | 1.400 mm | |
| Overall Working Height | 5.155 mm | |
| Bucket Pivot Point (Maximum Lift Height) | 4.300 mm | |
| Usable Dump Height with Telescopic Boom Extended | 4.095 mm | |
| Dump Height with Telescopic Boom Extended | 3.470 mm | |
| Reach (with M) | 955 mm | |
| Digging Depth | 60 mm | |
| Overall Width | 1.520 mm | |
| Track Width | 1.160 mm | |
| Ground Clearance | 345 mm | |
| Maximum Radius | 4.260 mm | |
| Outer Edge Turning Radius | 3.850 mm | |
| Inner Radius | 2.225 mm | |
| Articulated Joint Angle | 40 ° | |
| Backsweep Angle at Maximum Lift Height | 56 ° | |
| Dump Angle | 40 ° | |
| Backsweep Angle on Ground | 36 ° | |
| Address | ||
|---|---|---|
| Steering Type | Hydraulic pendulum articulated joint | |
| Steering Cylinder | 1 | |
| Oscillation Angle | ± 10 degrees | |
| Noise emission parameters | ||
|---|---|---|
| Average sound power level LwA (operator protection ceiling) | 99,9 dB(A) | |
| Guaranteed sound power level LwA (operator protection ceiling) | 101 dB(A) | |
| Indicated sound pressure level LpA (operator protection ceiling) | 70 dB(A) | |
| Average sound power level LwA (cabin) | 99,9 dB(A) | |
| Guaranteed sound power level LwA (cabin) | 101 dB(A) | |
| Indicated sound pressure level LpA (cabin) | 69 dB(A) | |
| Weights | ||
|---|---|---|
| Operating weight | 4.150 - 4.750 kg | |
| Digging force (max.) | 4.345 daN | |
| Lifting force (max.) | 4.255 daN | |
| Tipping load with bucket - straight machine, horizontal scissor lift | 2.790 - 2.960 kg | |
| Tipping load with bucket - articulated machine, horizontal scissor lift | 2.430 - 2.600 kg | |
| Tipping load with bucket - straight machine (extended) | 1.590 - 1.670 kg | |
| Tipping load with bucket - articulated machine (extended) | 1.360 - 1.450 kg | |
| Tipping load with bucket - straight machine, scissor lift in the lower position | 3.600 - 3.805 kg | |
| Tipping load with bucket - articulated machine, scissor lift in the lower position | 3.147 - 3.347 kg | |
| Tipping load with pallet forks - straight machine, horizontal scissor lift | 2.220 - 2.350 kg | |
| Tipping load with pallet forks - articulated machine, horizontal scissor lift | 1.940 - 2.070 kg | |
| Tipping load with pallet forks - straight machine (extended) | 1.380 - 1.460 kg | |
| Tipping load with pallet forks - articulated machine (extended) | 1.190 - 1.270 kg | |
| Tipping load with pallet forks - Upright machine, transport position | 2.631 - 2.779 kg | |
| Tipping load with pallet fork - articulated machine, transport position | 2.305 - 2.449 kg | |
| Electrical system | ||
|---|---|---|
| Operating voltage | 12 V | |
| Battery | 100 Ah | |
| Generator | 120 A | |
| Hydraulic system | ||
|---|---|---|
| Operating hydraulics operating pressure (max.) | 500 bar | |
| Working hydraulics flow rate (max.) | 56,6 (70,4) l/min. | |
| Working hydraulics operating pressure (max.) | 235 bar | |
| Volumes | ||
|---|---|---|
| Fuel tank capacity | 80 l | |
| Hydraulic oil tank capacity | 32 l | |
