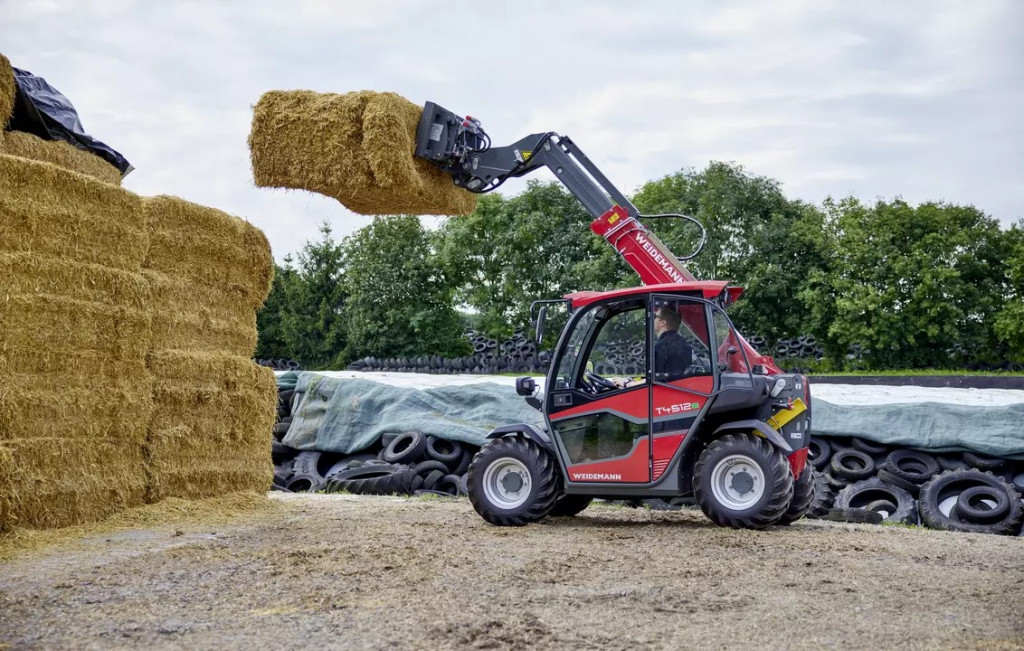

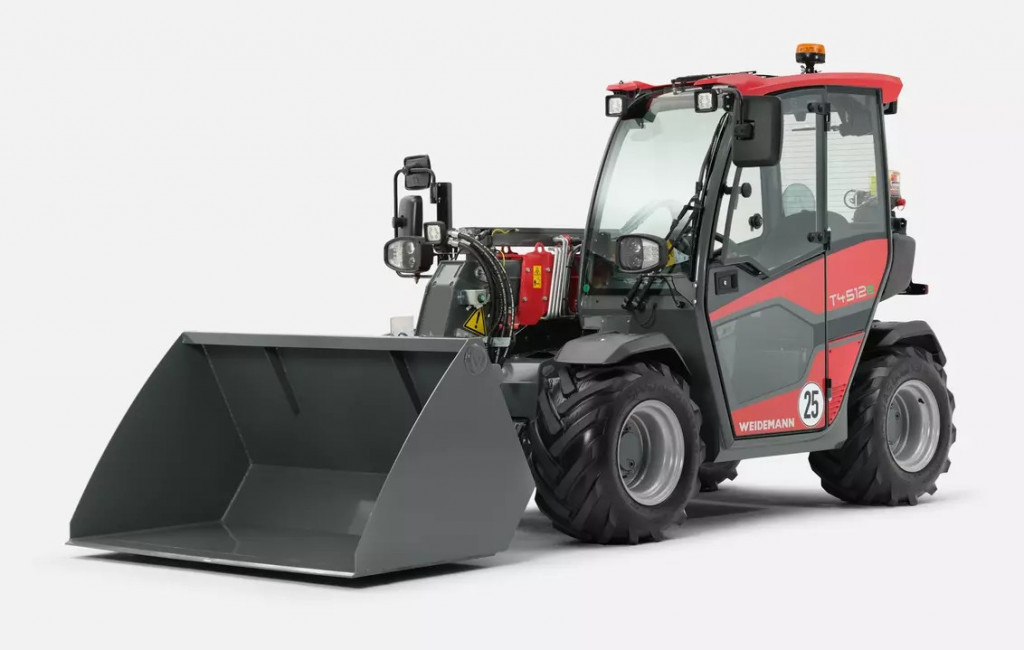

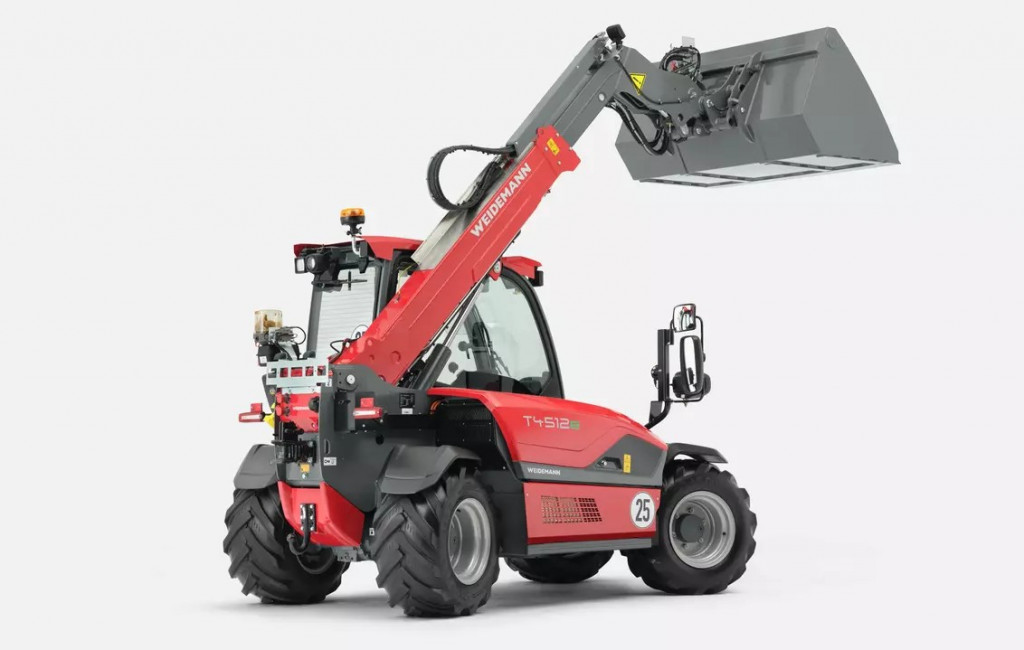

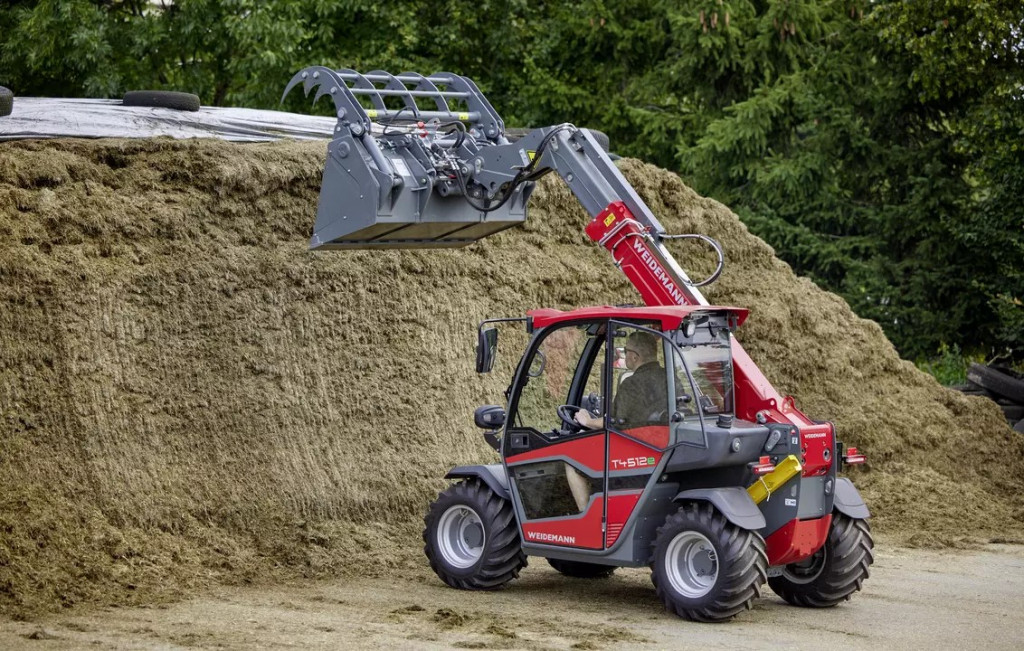

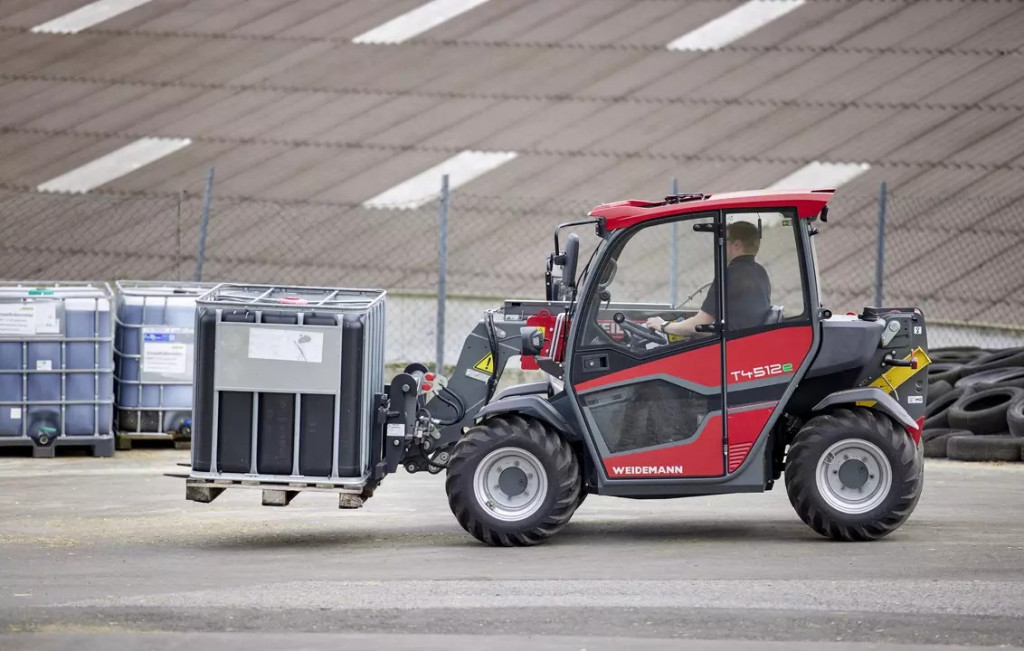

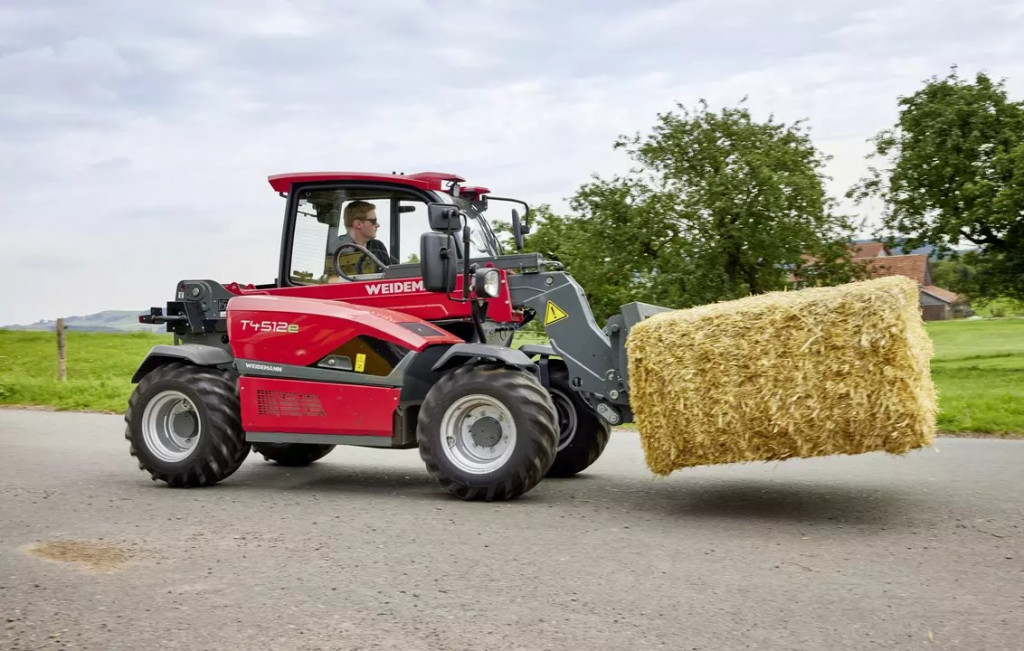

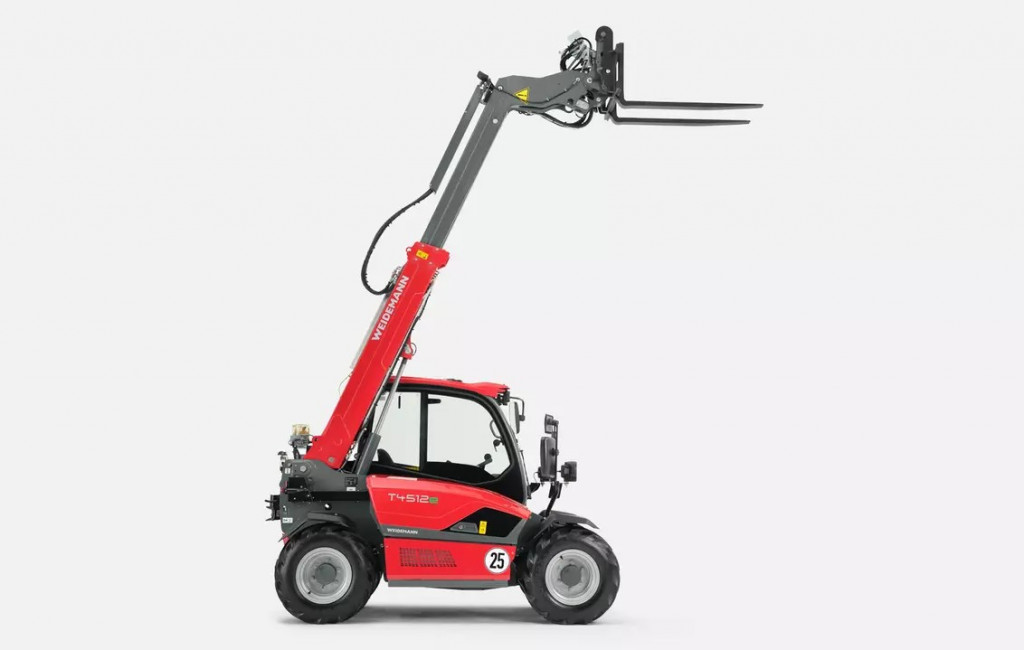

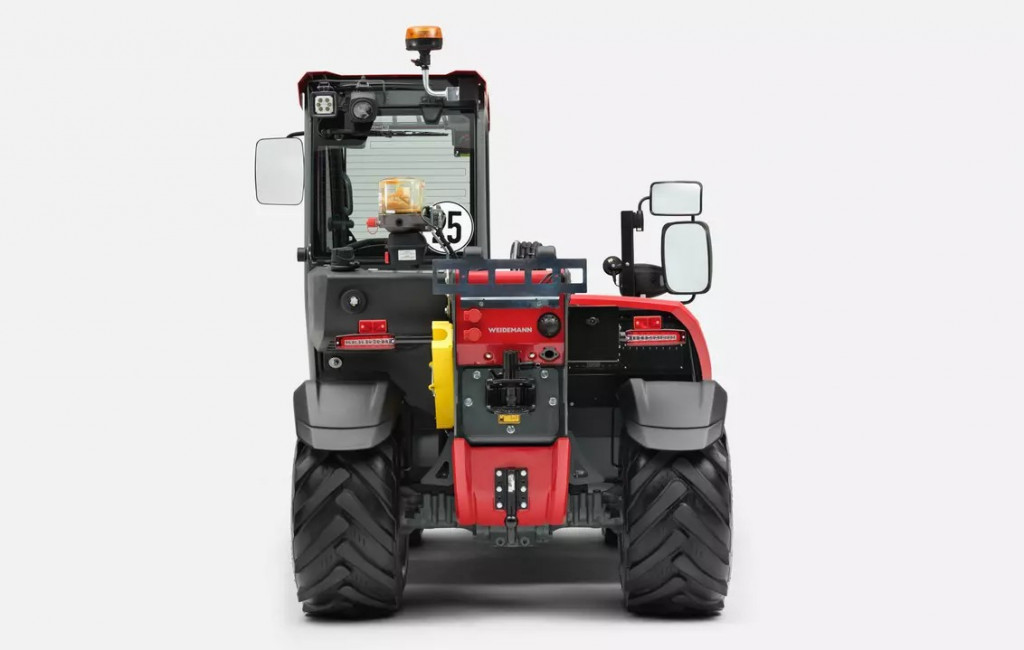

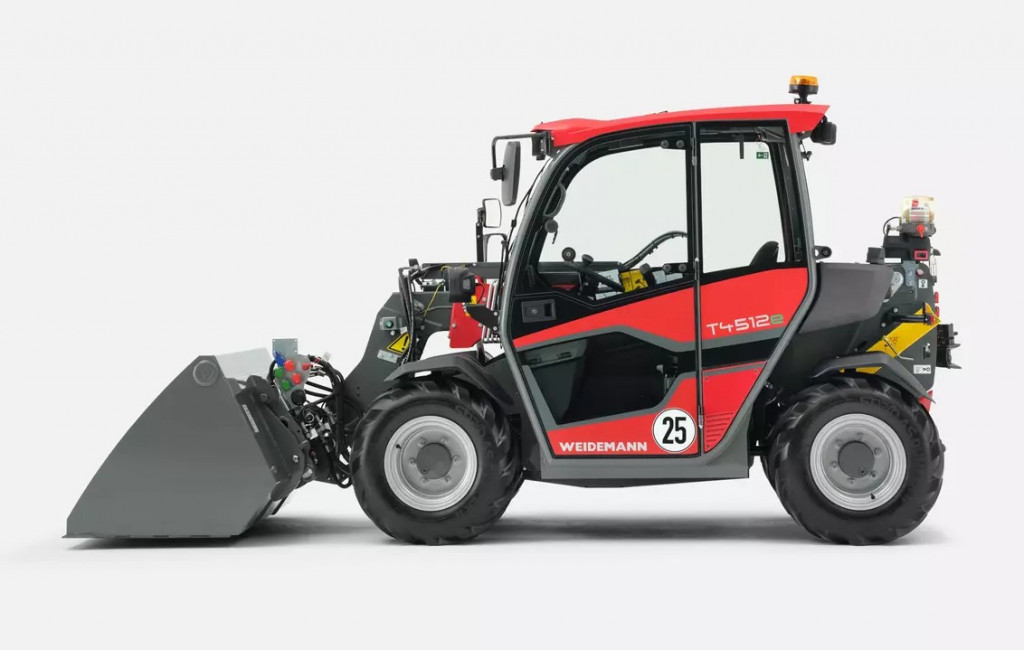

Name: T4512e telescopic loader
Brand: Weidemann
Availability: InStock

Drive

Drive Type

Electric

Transmission

articulated axle

Travel Speeds

Axle

PAL1165

Standard Travel Speed

0-15 km/h

Option 1 Travel Speed

0-20 km/h

Option 2 Travel Speed

0-25 km/h

Service Brake

Hydraulic disc brake

Parking Brake

Electric parking brake with hill-hold function

Differential Lock

100% on the front axle + rear axle (optional)

Standard battery

Battery Technology

lithium ion

Battery Voltage Specification

96V

Battery Capacity

18.0 kWh

Battery Weight

186kg

Onboard Charging Power (Max)

6 kW

Charging Time (0-100%)

3.2 - 7.5*h

Charging Time (20-80%)

1.8*h

Battery Life Up to

3.1** h

Battery option 1

Battery Technology

lithium ion

Battery Voltage Specification

96V

Battery Capacity

28.0 kWh

Battery Weight

244kg

Onboard Charging Power (Max)

6 kW

Charging Time (0-100%)

5.5 - 11.5*h

Charging Time (20-80%)

2.7*h

Battery Life Up to

5.2** h

Driver´s cab

Driver's cab

Cabin

Kinematics

Lift cylinder

Tipping cylinder

Quick-change system

mechanic (hydraulic)

Dimensions

Standard Tires

10.0/75-15.3 AS ET-40 Starco

Overall Length

3.944 mm

Overall Length without Bucket

2.991 mm

Bucket Pivot Point (to center of axle)

450 mm

Wheelbase

1.922 mm

Rear Overhang

427 mm

Height with Cab

1.995 mm

Seat Height

983 mm

Overall Working Height

5.280 mm

Bucket Pivot Point (Maximum Lift Height)

4.537 mm

Usable Dump Height with Telescopic Boom Extended

4.163 mm

Usable Dump Height with Telescopic Boom Retracted

2.949 mm

Dump Height with Telescopic Boom Extended

3.630 mm

Dump Height with Telescopic Boom Retracted

2.415 mm

Reach (with M)

557 mm

Digging Depth

91 mm

Overall Width

1.564 mm

Track Width

1.245 mm

Maximum Radius

3.506 mm

Outer Edge Turning Radius

2.695 mm

Inner Radius

951 mm

Backset Angle at Maximum Lift Height

52 °

Dump Angle

31 °

Backset Angle on Ground

44 °

Address

Steering Type

Four-wheel hydraulic steering with synchronized end-positions

Steering Cylinder

Max. Steering Angle

2x38 degrees

Rear Axle Oscillation Angle

±7 degrees

Electric motor

Drive motor (ECE R085)

33,1 kW

Working hydraulics motor (ECE R085)

21,2 kW

Noise emission parameters

Average sound power level LwA (booth)

85,7 dB(A)

Guaranteed sound power level LwA (booth)

87 dB(A)

Indicated sound pressure level LpA (booth)

73 dB(A)

Weights

Payload (max.)

1.250 kg

Service weight

2.750 - 3.100 kg

Electrical system

Operating voltage

12 V

Hydraulic system

Working hydraulics flow rate (max.)

41,6 l/min.

Working hydraulics working pressure (max.)

220 bar

Volumes

Hydraulic oil tank capacity

36 l

Standard

Drive and Battery

Battery (lithium-ion), 96 V, battery capacity (gross) 18 kWh
On-board charger 3 kW, type 2 plug, Schuko charging cable 230 V/10 A
Drive hydraulic motor (ECE R085) 33.1 kW
Working hydraulic motor (ECE R085) 21.2 kW

Drive system

Hydraulic all-wheel steering with end-position synchronization
Max. steering angle 38°
Rear axle pendulum angle: 7°
Steering cylinders: 2

Operator's station

Rops/Fops-approved cab with heating and ventilation and VSG safety glass on the right side
Front, roof, and rear windshield wipers
Heated windshield, right side window, and rear window
Tilt indicator
Armrest with storage compartment
Sun visor
Bottle holder
Storage net

Operator's seat

Comfortable seat with seat belt

Lighting

LED work lights: 1 front and 1 rear on the cab roof

Drive & Axles

Axle: PAL1165 planetary steering gear
Drive: Electric drive, energy recovery during deceleration, travel direction selectable via joystick
Battery: Internal battery heater, charging time from 20% to 80% charge: 1.8 h, charge activation switch
Speed: 15 km/h (optional, 20/25)
Travel speeds: 2
Service brake: Hydraulic disc brake on the front axle, acting on the rear axle via a cardan shaft
Parking brake: Electric parking brake with Hill Hold function (when coming to a complete stop on a slope, the electric motor holds the machine)

Tires

10.0/75-15.3 (255/75-15.3) AS ET-40 Starco

Loading system

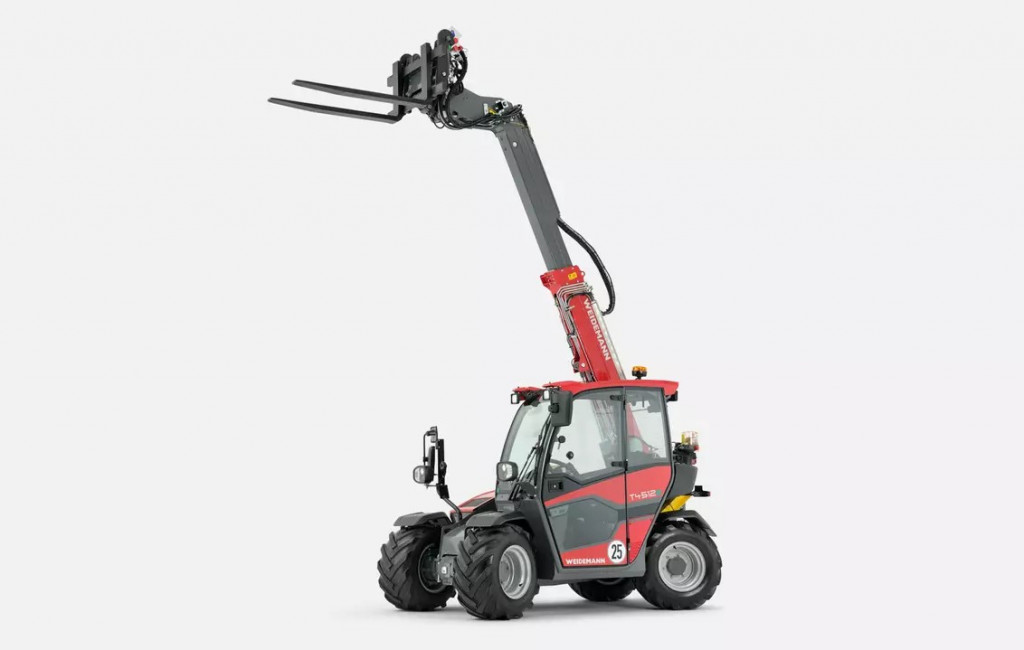

Telescopic boom, lifting height 4537 mm
Quick coupler system (Weidemann MV/TH - C) mechanical
Lift cylinder: 1
Tipping cylinder: 1

Hydraulics

Joystick with mechanical pilot control with travel direction switch and proportional telescopic function
3rd circuit front control via lever
Flatface connections size 2
VLS (Vertical Lift System)
Oil cooler Hydraulic

Other

Reverse alarm (acoustic)

EquipCare (Telematics System)

EquipCare 36 months (with App & Manager)

Optional

Operator's Station & Cab

Removable windshield grille
Leatherette seat; air suspension
Fabric seat; air suspension
Fabric seat; air suspension Heated roof
Heated roof panel
FM radio preparation (antenna, speakers)
DAB+ radio preparation (antenna, speakers)
Full DAB+ radio
2 USB ports
Adjustable steering column (tilt and height)

Lighting

Lighting according to StVZO (German Civil Code)
LED lighting according to StVZO (German Civil Code)
LED work lights (1000 lm) on the cab roof, 2 front, 1 rear
LED Performance work lights (2000 lm) on the cab roof, 2 front, 1 rear
LED work light (1000 lm) on the telescopic boom, 1 front
LED Performance work light (2000 lm) on the telescopic boom, 1 front
LED rotating beacon (yellow), national regulations must be observed!

Homologation & Public Road Use

Individual Certificate of Technical Approval < 25 km/h
Front and rear license plate holders
Warning signs: national regulations must be observed!

Drivetrain & Axles

Manual throttle
Steering type adjustment

Axles

PA1165 axle, four-wheel electric drive with lock, splitter, cardan shaft, 100% differential lock

Travel Speed

20 km/h (speed increase)
25 km/h (speed increase)

Tires

31x15.50-15 AS ET0 BKT TR-313 (AS profile, width 1,564 mm, height 1,992 mm)
31x15.50-15 (400/50-15) AS ET0 Starco (AS profile, width 1,564 mm, height 1,997 mm)
270/65-16.5 EM Kenda PowerGr ET-40 (EM profile, width 1,564 mm, height 2,000 mm) mm)
400/50-15 RP Starco Turf Tech ET0 (RP profile, width 1,564 mm, height 1,992 mm)
270/65-16.5 EM Kenda RockGr ET-40 (SureTrax profile, width 1,564 mm, height 2,000 mm)
315/55 R16 ET-30 Continental MPT81 (MPT profile, width 1,564 mm, height 1,990 mm)

Cargo system
Quick coupler plates

Weidemann HV/TH - C (hydraulic)
Weidemann HV/TH - C - ECS (hydraulic - easy coupler system)
Euro (hydraulic - ISO23206 EURO HV) (with two SVK size 3 couplings)
SkidSteer (hydraulic - SAEJ2513 SSL) HV)
SMS HV (hydraulic)
Kramer HV/TH - C (hydraulic)

Hydraulics

3rd control circuit oil flow adjustment
Shell PANOLIN S4 HLP Synth 46 (biodegradable hydraulic oil)
Hydraulic oil with preheating

Front hydraulics

3rd proportional control circuit with permanent switch function (operating mode: via front thumbwheel on the joystick)
VLS (vertical lift system) with additional manual mode
Front pressureless return (1 Flatface size 3, plug) with oil leak line (1 Flatface size 2, plug)
Double Faster quick coupler on the machine
Double Faster quick coupler on the machine + on the implement
2 double Faster quick couplers on the machine
2 double Faster quick couplers on the machine + on the implement
Front reversing valve in the third control circuit (third control circuit) Control with four size 2 Flatface couplings (operating mode: switch selectable [0 - 1])
Pressure relief from the front third control circuit on the telescopic boom

Rear hydraulics

Double-acting rear hydraulic connection via reversing valve (two size 3 SVK couplings) (front or rear third control circuit), operating mode: via switch (0 - 1) + third control circuit

Electrical System

28.0 kWh 96 V lithium-ion battery
On-board battery charger up to 6 kW (AC)

Charging connection cable (Type 2 on the machine, allows multiple selection)

Earthing plug (Schuko) 230 V/10 A (pre-selected; can be deselected if a charging cable is not needed or if a different type is required)
CEE, 3-pole 230 V/16 A (blue)
CEE, 5-pole 400 V/16 A (red)
Type 2 (IEC 62196)
EU adapter set (Schuko, CEE 3-pole, CEE 5-pole)

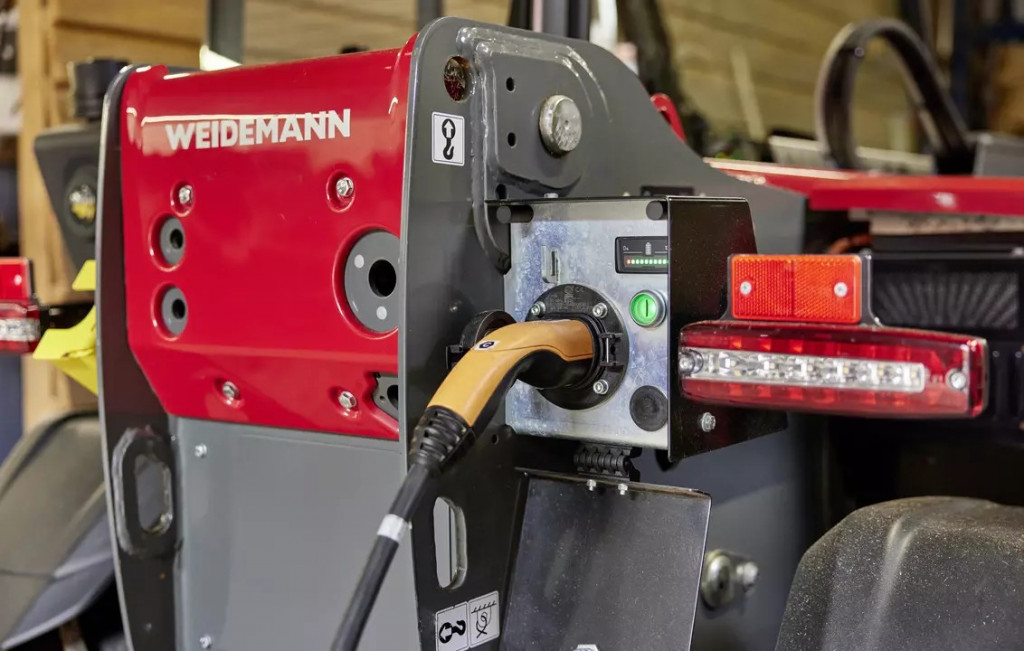

Battery charging activation

Lockable charging activation on the front
13-pole connector (2 electrical functions E1/E2 and lighting), operating mode: via 2 keys on the joystick; press for the 1st function, release for the 2nd function
13-pin connector (2 electrical functions E1/E2 and lighting), operating mode: via 2 keys on the joystick; release for the 1st function, press for the 2nd function
13-pin connector (2 electrical functions E1/E2 and lighting), operating mode: via 2 keys on the joystick; press for the 1st function, press for the 2nd function
13-pin connector (2 electrical functions E1/E2 and lighting), operating mode: via 2 keys on the joystick; release for the 1st function, release for the 2nd function
rear
3-pin rear connector (2 electrical functions E3/E4, switchable to the front socket), operating mode: via switch; Release for 1st function, release for 2nd function
Seven-pin rear connector for rear accessory lighting

Security options

Rear Blue Safety Light
KAT anti-theft device, operating mode: via coded ignition key

Special paintwork

Special single-color RAL paintwork instead of Weidemann red
Special multi-color RAL paintwork

Other

Large toolbox (for storing the charging cable) with tool set and manual grease gun
Combination bag (warning triangle/first-aid kit)
Fully automatic central lubrication system

Towing and rescue devices
