3060

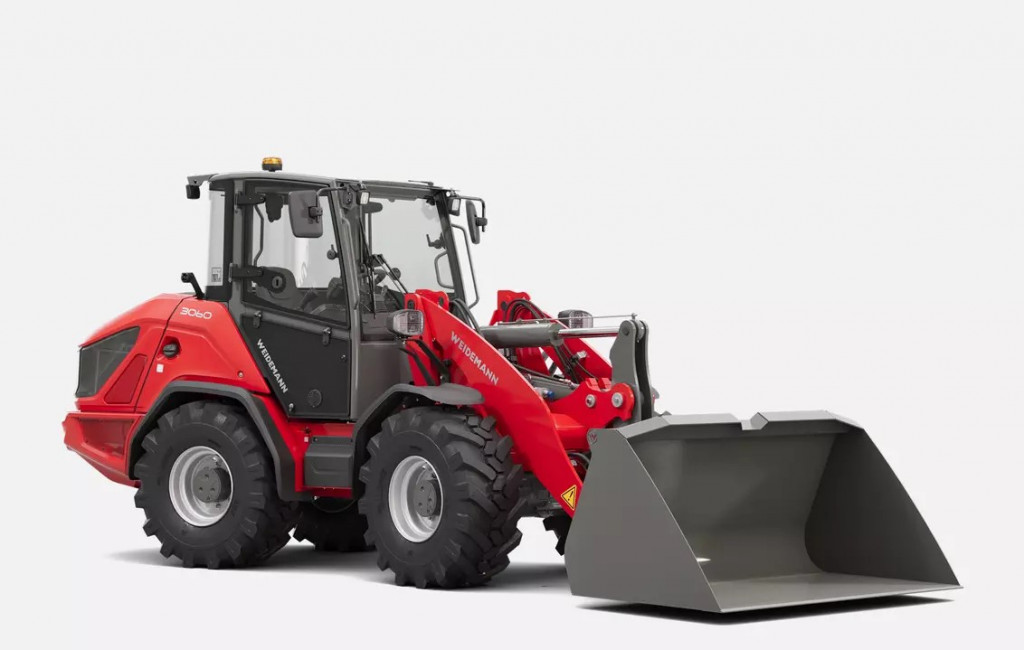

Wheel loader 3060
Next level: The 3060 wheel loader offers comprehensive standard equipment and advanced technology. Its convincing price-performance ratio makes this machine an ideal all-rounder. Thanks to its wide range of options, the machine can be perfectly adapted to your individual requirements and needs. The 3060 wheel loader is particularly notable for its comfortable, enclosed cab with excellent ergonomics and optimal all-round visibility. The 60 series features the following features: easy entry and exit, electronic ecDrive with several driving modes, electric parking brake, robust center linkage with optimized hose routing, and excellent service access thanks to the transversely mounted engine and optimized component layout.
Share:
Print:
Do you want us to help you to search?
If you prefer us to find the most suitable machine for your needs, you just have to ask us. Together we will find YOUR MACHINE!!
Send inquiry
| Drive | ||
|---|---|---|
| Drive Type | ecDrive (Electronic Controlled Drive) | |
| Transmission | Hydrostatic with distribution gear and articulated axle | |
| Travel Speeds | 2 | |
| Axle | PA 1422 | |
| Standard Travel Speed | 0-20 km/h | |
| Option 1 Travel Speed | 0-30 km/h | |
| Service Brake | Drum brake (optional: multi-disc brake) | |
| Parking Brake | Drum brake (optional: multi-disc brake) | |
| Differential Lock | 100% on the front axle + rear axle | |
| Driver´s cab | ||
|---|---|---|
| Driver's cabin | Cabin | |
| Kinematics | ||
|---|---|---|
| Kinematics type | Z | |
| Lift cylinder | 1 | |
| Tipping cylinder | 1 | |
| Quick-change system | Hydraulic | |
| Standard engine data | ||
|---|---|---|
| Engine Manufacturer | Kohler | |
| Engine Model | KDI 2504 TCR | |
| Number of Cylinders | 4 | |
| Engine Power | 48 kW | |
| Engine Power | 65 HP | |
| At Maximum RPM | 2,200 rpm | |
| Maximum Torque | 300Nm | |
| Displacement | 2,482 cmü | |
| Coolant Type | water | |
| Emissions Standard | V | |
| Exhaust Aftertreatment | DOC/DPF | |
| Dimensions | ||
|---|---|---|
| Standard Tires | 365 / 70 R18 BKT MP513 ET30 | |
| Overall Length | 5.590 mm | |
| Overall Length without Bucket | 4.880 mm | |
| Bucket Pivot Point (to center of axle) | 1.120 mm | |
| Wheelbase | 2.150 mm | |
| Rear Overhang | 1.435 mm | |
| Height with Cab | 2.485 mm | |
| Seat Height | 1.460 mm | |
| Overall Working Height | 4.215 mm | |
| Bucket Pivot Point (maximum lift height) | 3.395 mm | |
| Usable Dump Height | 3.140 mm | |
| Dump Height | 2.590 mm | |
| Reach (with M) | 820 mm | |
| Digging Depth | 145 mm | |
| Overall Width | 1.720 mm | |
| Track Width | 1.360 mm | |
| Ground Clearance | 335 mm | |
| Maximum Radius | 4.385 mm | |
| Outer Edge Turning Radius | 3.935 mm | |
| Inner Radius | 2.125 mm | |
| Articulated Joint Angle | 40 ø | |
| Setback Angle at Maximum Lift Height | 65 ø | |
| Dump Angle | 45 ø | |
| Setback Angle on Ground | 45 ø | |
| Address | ||
|---|---|---|
| Steering Type | Hydraulic pendulum articulated joint | |
| Steering Cylinder | 1 | |
| Oscillation Angle | ± 10 degrees | |
| Noise emission parameters | ||
|---|---|---|
| Average sound power level LwA (booth) | 99,6 dB(A) | |
| Guaranteed sound power level LwA (booth) | 101 dB(A) | |
| Indicated sound pressure level LpA (booth) | 73 dB(A) | |
| Weights | ||
|---|---|---|
| Operating weight | 5.285 - 5.700 kg | |
| Digging force (max.) | 8.135 daN | |
| Lifting force (max.) | 5.515 daN | |
| Tipping load with bucket - straight machine, horizontal scissor lift | 3.350 - 3.770 kg | |
| Tipping load with bucket - articulated machine, horizontal scissor lift | 2.830 - 3.200 kg | |
| Tipping load with bucket - straight machine, scissor lift in the lower position | 4.974 - 5.574 kg | |
| Tipping load with bucket - articulated machine, scissor lift in the lower position | 4.230 - 4.759 kg | |
| Tipping load with pallet forks - straight machine, horizontal scissor lift | 2.830 - 3.170 kg | |
| Tipping load with pallet forks - articulated machine, horizontal scissor lift | 2.410 - 2.710 kg | |
| Tipping load with pallet forks - straight machine, transport position | 3.405 - 3.803 kg | |
| Tipping load with pallet forks - articulated machine, transport position | 2.911 - 3.262 kg | |
| Electrical System | ||
|---|---|---|
| Operating weight | 5.285 - 5.700 kg | |
| Digging force (max.) | 8.135 daN | |
| Lifting force (max.) | 5.515 daN | |
| Tipping load with bucket - straight machine, horizontal scissor lift | 3.350 - 3.770 kg | |
| Tipping load with bucket - articulated machine, horizontal scissor lift | 2.830 - 3.200 kg | |
| Tipping load with bucket - straight machine, scissor lift in the lower position | 4.974 - 5.574 kg | |
| Tipping load with bucket - articulated machine, scissor lift in the lower position | 4.230 - 4.759 kg | |
| Tipping load with pallet forks - straight machine, horizontal scissor lift | 2.830 - 3.170 kg | |
| Tipping load with pallet forks - articulated machine, horizontal scissor lift | 2.410 - 2.710 kg | |
| Tipping load with pallet forks - straight machine, transport position | 3.405 - 3.803 kg | |
| Tipping load with pallet forks - articulated machine, transport position | 2.911 - 3.262 kg | |
| Hydraulic system | ||
|---|---|---|
| Operating hydraulics operating pressure (max.) | 500 bar | |
| Working hydraulics flow rate (max.) | 70,2 (87,2) l/min. | |
| Working hydraulics operating pressure (max.) | 235 bar | |
| Volumes | ||
|---|---|---|
| Fuel tank capacity | 80 l | |
| Hydraulic oil tank capacity | 32 l | |
