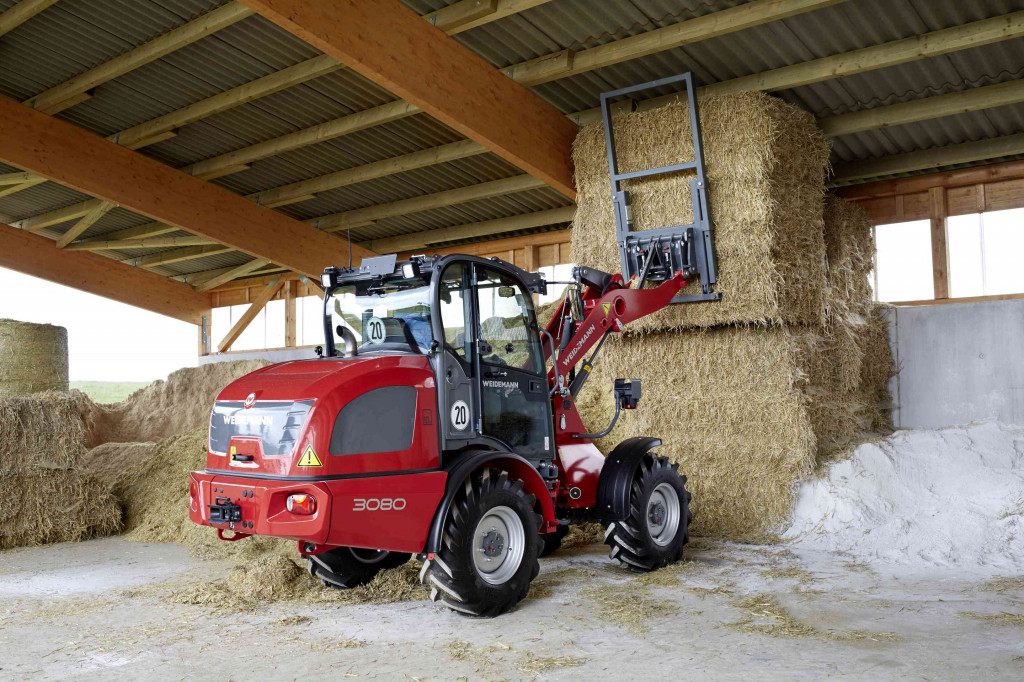

3080
Wheel loader
Weidemann wheel loaders increase productivity on all jobs. In addition to high functionality, a high level of comfort and the highest safety standards, they are very powerful and durable: Weidemann offers you the right solution for every task.
Share:
Print:
Do you want us to help you to search?
If you prefer us to find the most suitable machine for your needs, you just have to ask us. Together we will find YOUR MACHINE!!
Send inquiry
| Engine data | ||
|---|---|---|
| Manufacturer | Deutz | |
| Model | TCD 2.9 L4 S5 | |
| Engine output [kW / CV] | 55,4 / 75 | |
| At maximum rpm [rpm] | 2300 | |
| Cylinders [units] | 4 | |
| Displacement [cm3] | 2900 | |
| Cooling | Water / Charge air | |
| Exhaust standard | Stage V | |
| Exhaust after-treatment | DPF1 + DOC2 | |
1 DPF: Diesel particulate filter
2 DOC: Diesel oxidation catalytic converter
| Speed | ||
|---|---|---|
| Level 1 [km/h] | 7 | |
| Level 2 [km/h] | 20 | |
| Optional [km/h] | 0 - 30 | |
| Operating data | ||
|---|---|---|
| Operating weight [kg] | 5100 | |
| Tipping loads* | ||
|---|---|---|
| (According ISO 14397 - EN474-3) | ||
| With bucket straight [kg] | 3213 | |
| With bucket articulated [kg] | 2714 | |
| With pallet fork straight [kg] | 2715 | |
| With pallet fork articulated [kg] | 2304 | |
* Horizontal loading frame
| Hydraulic | ||
|---|---|---|
| Kinematics | Z | |
| Lift cylinder [units] | 2 | |
| Tipping cylinder [units] | 1 | |
| Work hydraulics pressure [bar] | 220 | |
| Work hydraulics discharge volume [l/min] | 73,6 | |
| Driving hydraulics working pressure [bar] | 450 | |
| Steering system | ||
|---|---|---|
| Steering | Hydraulic articulated pendulum steering | |
| Articulation angle [º] | 42 | |
| Oscillating angle [º] | ± 12 | |
| Steering cylinder [units] | 1 | |
| Filling volumes | ||
|---|---|---|
| Fuel tank capacity [l] | 82 | |
| Hydraulic oil tank [l] | 66 | |
| Electrical system | ||
|---|---|---|
| Operating voltage [V] | 12 | |
| Battery isolator switch | ||
| Dimensions | ||
|---|---|---|
| Overall length [mm] | 5675 | |
| Total length without bucket [mm] | 4649 | |
| Center of axle up to the bucket pivot point [mm] | 1025 | |
| Wheel base [mm] | 2005 | |
| Rear overhang [mm] | 1531 | |
| Height of low cabin [mm] | 2454 | |
| Height of high cabin [mm] | 2631 | |
| Seat height [mm] | 1518 | |
| Total working height [mm] | 4106 | |
| Max. height of the bucket pivot point [mm] | 3317 | |
| Overhead loading height [mm] | 3061 | |
| Dumping height [mm] | 2503 | |
| Scraping depth [mm] | 82 | |
| Total width [mm] | 1580 | |
| Lane width [mm] | 1211 | |
| Ground clearance [mm] | 323 | |
| Maximum radius [mm] | 3943 | |
| Radius on the outer edge [mm] | 3461 | |
| Inside radius [mm] | 1685 | |
| Rollback angle at max. lift height [º] | 51 | |
| Max. angle for bucket emptying [º] | 32 | |
| Rollback angle on the ground [º] | 49 | |
