1390e

Name: Hoftrac 1390e
Brand: Weidemann
Availability: InStock

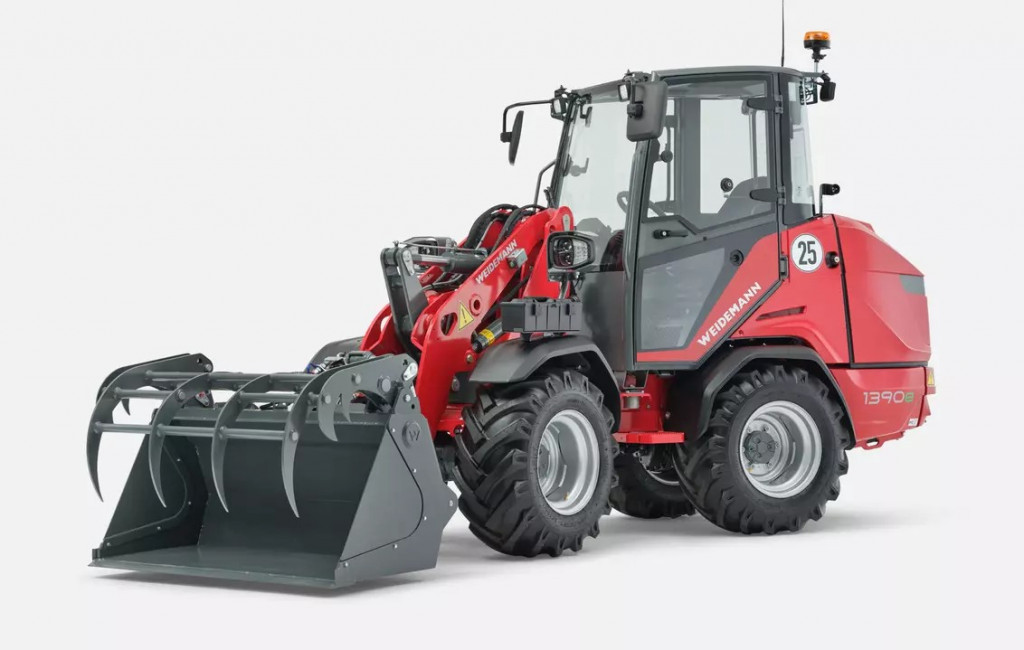

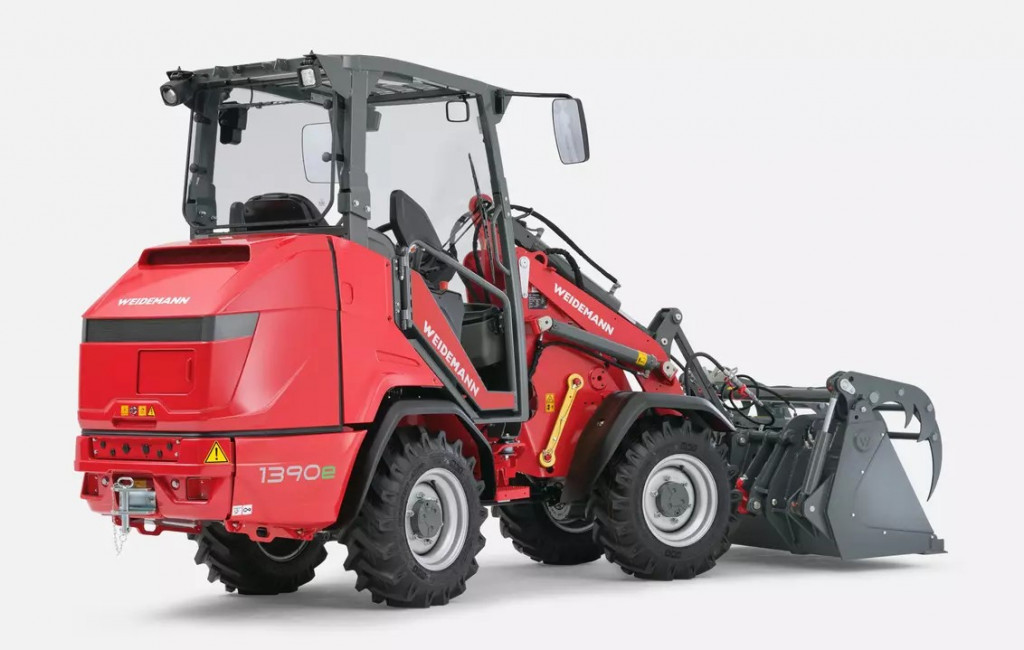

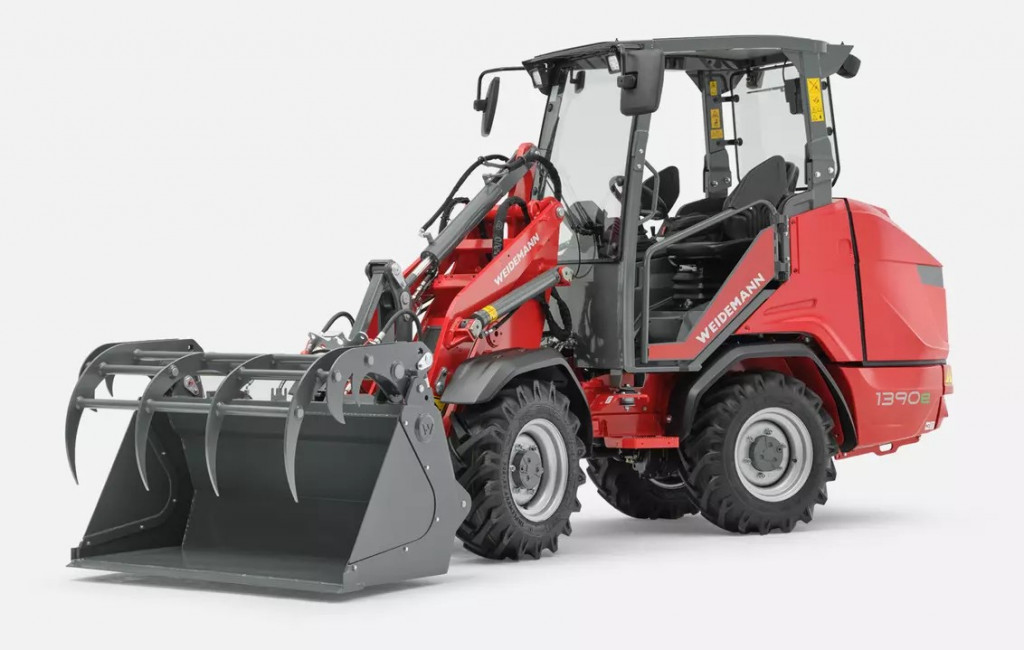

Hoftrac 1390e

The fully electric Hoftrac 1390e operates emission-free and with significantly reduced noise, protecting both the operator and the working environment. Therefore, the loader is predestined for use indoors and in areas sensitive to noise and exhaust fumes. The optional comfort cab with a 4-pillar design and panoramic rear window offers a generous amount of space and ensures optimal all-round visibility. The sophisticated cab heating concept allows the machine to be used year-round. The built-in 96 V lithium-ion battery is available in three different performance levels, allowing operating and charging times to be optimally adapted to the respective operating requirements. Various charging cables and plugs allow for simple and flexible charging of the machine.

I want more
information

Find point of sale

Filter

+ Information

Points of sale

Product

Do you want us to help you to search?

If you prefer us to find the most suitable machine for your needs, you just have to ask us. Together we will find YOUR MACHINE!!

Send inquiry

Technical data
Characteristics
Gallery
Downloads

Drive
Drive Type	Electric
Transmission	articulated axle
Travel Speeds	2
Axle	PA940
Standard Travel Speed	0-15 km/h
Option 1 Travel Speed	0-20 km/h
Option 2 Travel Speed	0-25 km/h
Service Brake	Multi-disc brake on the front axle with effect on the rear axle via the articulated axle
Parking Brake	Electric parking brake with Hill-hold function
Differential Lock	100% on the front axle + rear axle (optional)

Standard battery
Battery Technology	lithium ion
Battery Voltage Specification	96V
Battery Capacity	14.1 kWh
Battery Weight	153kg
Onboard Charging Power (Max)	3 kW
Charging Time (0-100%)	4.7 - 6 hours
Charging Time (20-80%)	2.9h
Battery Life Up to	2.5 hours

Battery option 1
Battery Technology	lithium ion
Battery Voltage Specification	96V
Battery Capacity	18.0 kWh
Battery Weight	186kg
Onboard Charging Power (Max)	6 kW
Charging Time (0-100%)	3.2 - 7.5 hours
Charging Time (20-80%)	1.8 hours
Battery Life Up to	3.5 hours

Battery option 2
Battery Technology	lithium ion
Battery Voltage Specification	96V
Battery Capacity	28.0 kWh
Battery Weight	244kg
Onboard Charging Power (Max)	6 kW
Charging Time (0-100%)	5.5 - 11.5h
Charging Time (20-80%)	2.7 hours
Battery Life Up to	5.3h

Driver´s cab
Driver's cab	FSD (eps, cabin)

Kinematics
Kinematics type	P (PZ)
Lift cylinder	2
Tipping cylinder	1
Quick-change system	Hydraulic

Dimensions
	P-kinematics (standard)	Kinematics in P (long)	Kinematics in PZ
Standard tires	10.0/75 - 15.3 AS ET40	10.0/75 - 15.3 AS ET40	10.0/75 - 15.3 AS ET40
Overall length	4,475mm	4,820mm	4,630mm
Overall length without bucket	3,635mm	3,980mm	3,795mm
Bucket pivot point (to center of axle)	600mm	905mm	720mm
Wheelbase	1,732mm	1,732mm	1,732mm
Rear overhang	1,232mm	1,232mm	1,232mm
Height with fixed operator's overhead guard	2,340mm	2,340mm	2,340mm
Height with foldable operator's overhead guard (EPS)	2,395mm	2,395mm	2,395mm
Height with foldable operator's overhead guard (EPS)	1,910mm	1,910mm	1,910mm
Height with cab	2,340mm	2,340mm	2,340mm
Seat height	1,350mm	1,350mm	1,350mm
Total working height	3,680mm	3,950mm	3,850mm
Bucket pivot point (maximum lift height)	3,024mm	3,220mm	3,220mm
Useful dump height	2,700mm	2,905mm	2,905mm
Dump height	2,140mm	2,350mm	2,400mm
Digging depth	60mm	110mm	107mm
Overall width	1,124mm	1,124mm	1,124mm
Track width	860mm	860mm	860mm
Maximum radius	3,000mm	3,150mm	3,340mm
Outer edge turning radius	2,730mm	2,730mm	3,005mm
Inner radius	1,526mm	1,526mm	1,815mm
Articulated joint angle	45°	45°	40°
Setback angle at maximum lift height	42°	65°	57°
Dump angle	43°	42°	37°
Setback angle on ground	51°	56°	50°
Enviar comentarios	Enviar comentarios	Enviar comentarios
Paneles laterales	Paneles laterales	Paneles laterales
Historial	Historial	Historial
Guardado	Guardado	Guardado

Address
Steering Type	Hydraulic pendulum articulated joint
Steering Cylinder	1
Oscillation Angle	± 8 degrees

Electric motor
Drive motor (ECE R085)	33,1 kW
Working hydraulics motor (ECE R085)	21,2 k

Noise emission parameters
Average sound power level LwA (operator protection ceiling)	83,9 dB(A)
Guaranteed sound power level LwA (operator protection ceiling)	85 dB(A)
Indicated sound pressure level LpA (operator protection ceiling)	60 dB(A)
Average sound power level LwA (cabin)	83,9 dB(A)
Guaranteed sound power level LwA (cabin)	85 dB(A)
Indicated sound pressure level LpA (cabin)	64 dB(A)

Weights
Operating weight	2.700 - 3.200 kg
Digging force (max.)	2.158 - 3.492 daN
Lifting force (max.)	2.448 - 3.592 daN
Tipping load with bucket - straight machine, horizontal scissor lift	1.670 - 2.280 kg
Tipping load with bucket - articulated machine, horizontal scissor lift	1.410 - 2.020 kg
Tipping load with bucket - straight machine, scissor lift in the lower position	2.470 - 3.560 kg
Tipping load with bucket - articulated machine, scissor lift in the lower position	2.090 - 3.130 kg
Tipping load with pallet forks - straight machine, horizontal scissor lift	1.370 - 1.870 kg
Tipping load with pallet forks - articulated machine, horizontal scissor lift	1.160 - 1.660 kg
Tipping load with pallet forks - straight machine, transport position	1.610 - 2.260 kg
Tipping load with pallet forks - articulated machine, transport position	1.370 - 2.000 kg

Electrical system
Operating voltage	12 V

Hydraulic system
Working hydraulics flow rate (max.)	44 l/min.
Working hydraulics working pressure (max.	210 bar

Volumes
Hydraulic oil tank capacity	30 l

Standard

Drive & Battery

Battery (lithium-ion), 96 V, battery capacity (raw) 14.1 kWh
On-board charger 3 kW, type 2 plug, 230 V/10 A Schuko charging cable
Drive hydraulic motor (ECE R085) 33.1 kW
Working hydraulic motor (ECE R085) 21.2 kW

Drive system

Hydraulic pendulum articulated joint, oscillation angle: ± 8°
Drive cylinder: 1

Operator's station

Operator's overhead guard with ROPS/FOPS-certified restraint system
Ample space available at all operator positions
Wide and ergonomic access
Adjustable steering column (tilt and height)

Operator's seat

Comfortable seat with seat belt and full suspension; Adjustable weight, backrest, and fore/aft position.

Lighting

LED work lights, two at the front and one at the rear, on the overhead guard for the operator.

Drive & Axles

Axle: PA940 planetary gear
Drive: Electric drive, energy recovery during deceleration, travel direction selectable via joystick, Auto/Eco mode
Battery: Internal battery heater, charging time from 20% to 80% charge: 2.9 h, charging activation switch
Speed: 15 km/h (optionally 20/25 km/h)
Travel speeds: 2
Service brake: Multi-disc brake on the front axle, acting on the rear axle via the driveshaft
Parking brake: Electric parking brake with Hill Hold function (when coming to a complete stop on a slope, the electric motor holds the machine)

Tires

10.0/75 - 15.3 AS ET40

Loading system

Loading arm Load capacity, skip height 3040 mm
Hydraulic quick-release coupling system (Weidemann HV/HT - C)
Kinematics: P
Lift cylinders: 2
Tilt cylinders: 1
Float position for lift and tilt cylinders

Hydraulics

Mechanical joystick with pre-control and travel direction switch
3rd front control circuit via lever with single lock for permanent operation

Other

Cast iron rear counterweight

EquipCare (telematics system)

EquipCare 36 months (with App & Manager)

Optional

Operator's Station

ROPS/FOPS certified, fold-down EPS overhead guard
Cab with two one-piece doors and heated windshield and rear window
Cab with two two-piece doors and heated windshield and rear window
Windshield and rear window with front and rear wipers
Leatherette seat; air suspension (MSG 93)
Leatherette seat; air suspension; heated (MSG 93)
Fabric seat (standard with cab) (MSG 83)
Leatherette seat; air suspension (MSG 93)
Fabric seat; Air suspension, heated (MSG 93)
Thermal panel on the roof
FM radio preparation (antenna, speakers)
DAB+ radio preparation (antenna, speakers)
Complete DAB+ radio
Sun visor

Lighting

Lighting according to StVZO (German Road Traffic Regulations)
LED lighting according to StVZO (German Road Traffic Regulations)
Performance LED work lights (2000 lm) on the roof, 2 front, 2 rear
Preparation for rotating beacon
LED rotating beacon (yellow), national regulations must be observed!
Rotating beacon (yellow) with magnetic base, national regulations must be observed!

Homologation & Public Road Use

Individual national approval < 25 km/h
Front and rear license plate holder
Warning triangle

Drive & Axles

Manual throttle

Axles

PA940 planetary gear, electric four-wheel drive with lock, splitter, cardan shaft, 100% differential lock

Travel Speed

20 km/h (speed increase)
25 km/h (speed increase)

Tires

11.5/80-15.3 AS ET40 (AS profile, width 1,150 mm [turned 1,340 mm], height 2,364 mm)
31x15.50-15 AS ET0 Starco (AS profile, width 1,320 mm, height 2,320 mm)
31x15.50-15 AS ET-37 Starco (AS profile, width 1,394 mm, height 2,320 mm)
15.0/55-17 AS ET0 (AS profile, width 1,310 mm, height 2,375 mm)
15.0/55-17 AS ET-40 (AS profile, width 1,400 mm, height 2,375 mm)
425/55 R 17 AS ET-40 Alliance 570 (AS profile, width 1,445 mm, height 2,375 mm)
31x15.50-15 EM ET0 (EM profile, width 1,340 mm, height 2,325 mm)
31x15.50-15 EM ET-37 (EM profile, width 1,414 mm, height 2,325 mm)
12-16.5 EM ET0 (EM profile, width 1,250 mm, height 2,341 mm)
425/40 B17 ET0 PR14 Delcora GSP+ (EM profile, width 1,365 mm, height 2,329 mm)
31x15.5-15 BKT TracMaster ET 0 (RP profile, width 1,345 mm, height 2,335 mm)
33x15.5-15 BKT TracMaster ET-37 (RP profile, width 1,424 mm, height 2,363 mm)
10-16.5 Sure Trax ET40 BKT (SureTrax profile, width 1128 mm [rotated 1300 mm], height 2323 mm)
12-16.5 Sure Trax ET45 BKT (SureTrax profile, width 1,175 mm [turned 1,370 mm], height 2,358 mm)
315/55R16 Conti MPT81 ET-30 (MPT profile, width 1,302 mm, height 2,305 mm)

Load-bearing system

LS921 P-kinematics, lifting height (3,200 mm)
LS937 P-kinematics, lifting height (3,200 mm)

Quick-coupler plates

Weidemann HV/HT - C - ECS (hydraulic - easy coupler system)
Euro (hydraulic - ISO23206 EURO HV) (with two SVK size 3 couplings)
SkidSteer (hydraulic - SAEJ2513 SSL HV)
SMS HV (hydraulic)
Kramer HV/WL - C (hydraulic)
Downhill brake valve (protection against rupture of the lifting cylinder lines) Lifting and tipping) with float position
Loader arm cushioning
Bucket position indicator

Hydraulics

3rd control circuit oil flow adjustment
Additional hydraulic oil cooler
Shell PANOLIN S4 HLP Synth 46 (biodegradable hydraulic oil)
Hydraulic oil with preheating

Front hydraulics

3rd proportional control circuit with permanent switch function, pressure relief of the front 3rd control circuit on the loading equipment, oil flow adjustment (operating mode: via front thumbwheel on the joystick)
Front pressureless return (1 Flatface size 3, plug) with oil drain line (1 Flatface size 2, plug)
Double Faster quick coupler on the machine
Double Faster quick coupler on the machine + on the implement

Rear hydraulics

One double-acting rear hydraulic connection via reversing valve (two SVK couplings size 3) (3rd control circuit) Front or rear), operating mode: via switch (0 - 1) + 3rd control circuit
Rear pressureless return (1 Flatface size 3, plug) with oil leak line (1 Flatface size 2, plug)

Electrical System

18.0 kWh 96 V lithium-ion battery
28.0 kWh 96 V lithium-ion battery

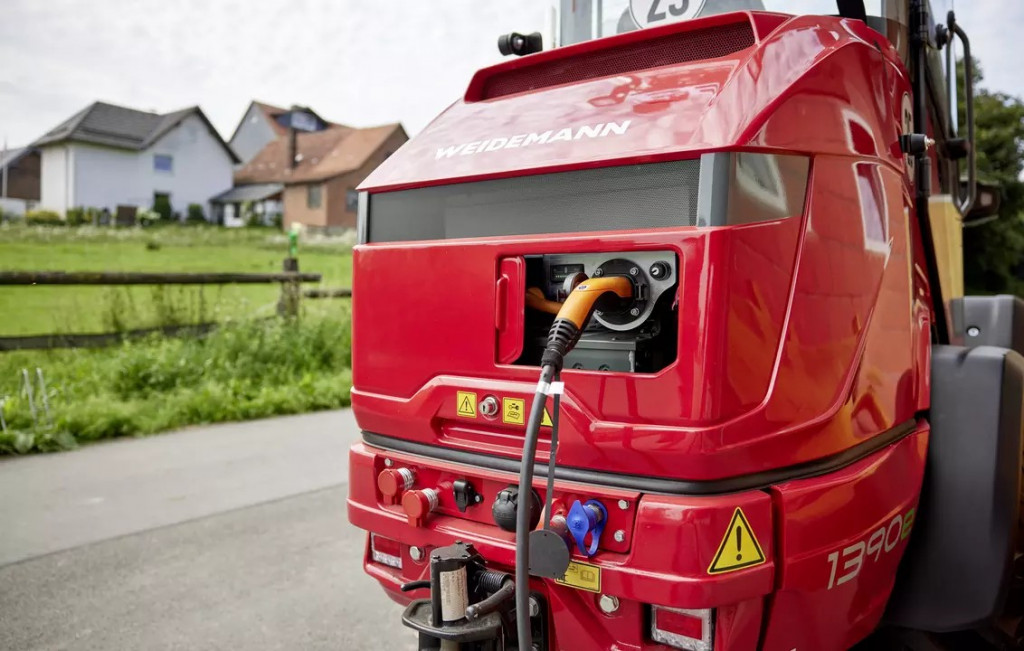

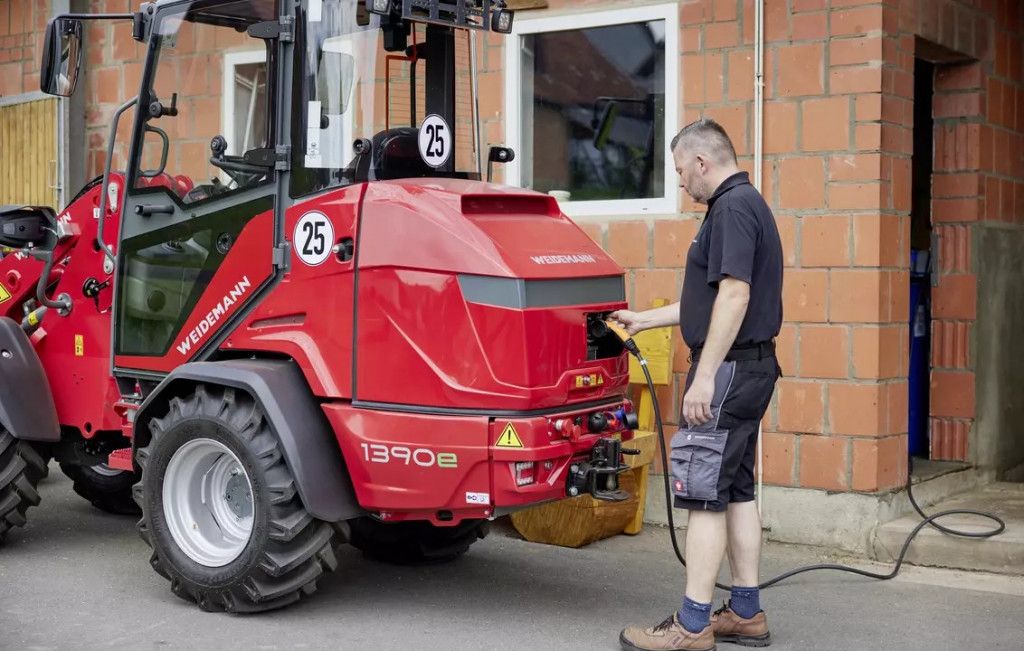

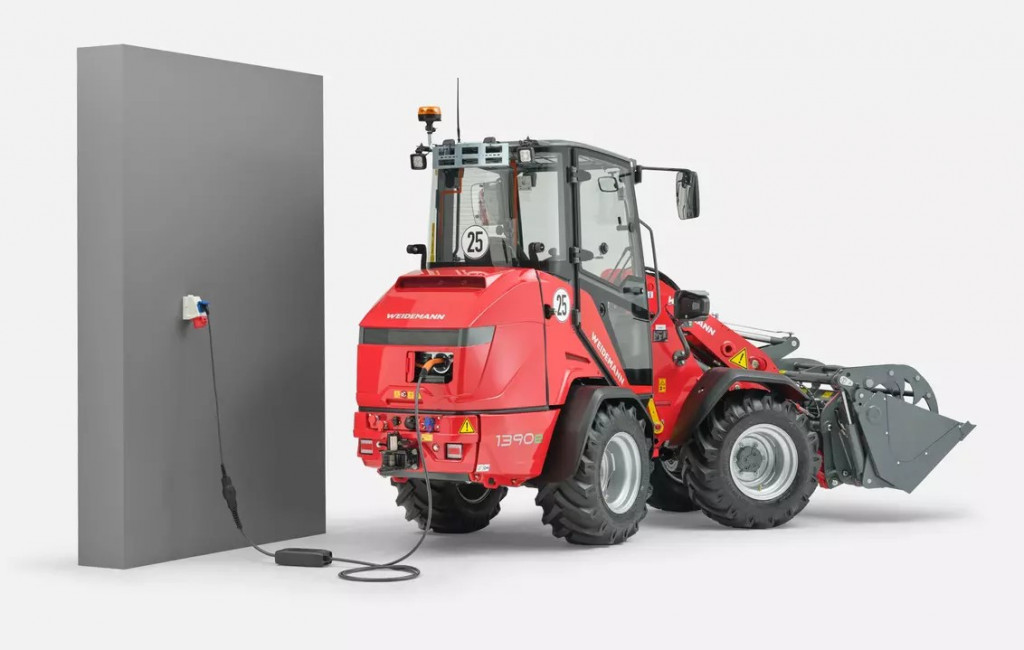

On-board battery charger up to 6 kW (AC)

Charging connection cable (Type 2 on the machine, allows multiple selection)

Grounded mains plug (Schuko) 230 V/10 A (pre-selected; can be deselected if a charging cable is not required or if a different type is required)
CEE, 3-pole 230 V/16 A (blue)
CEE, 5-pole 400 V/16 A (red)
Type 2 (IEC 62196)
EU adapter set (Schuko, CEE 3-pole, CEE 5-pole)

Battery charging activation

Lockable charging activation on the front
13-pin connector 13-pole connector (2 electrical functions E1/E2 and lighting), operating mode: via 2 keys on the joystick; press for the 1st function, release for the 2nd function
13-pole connector (2 electrical functions E1/E2 and lighting), operating mode: via 2 keys on the joystick; release for the 1st function, press for the 2nd function
13-pole connector (2 electrical functions E1/E2 and lighting), operating mode: via 2 keys on the joystick; press for the 1st function, press for the 2nd function
13-pole connector (2 electrical functions E1/E2 and lighting), operating mode: via 2 keys on the joystick; Release for 1st function, release for 2nd function
Rear
3-pin rear connector (2 electrical functions E3/E4, switchable to the front socket), operating mode: via switch; Release for 1st function, release for 2nd function
Seven-pin rear connector for rear accessory lighting

Security Options
