KDD ISOBUS

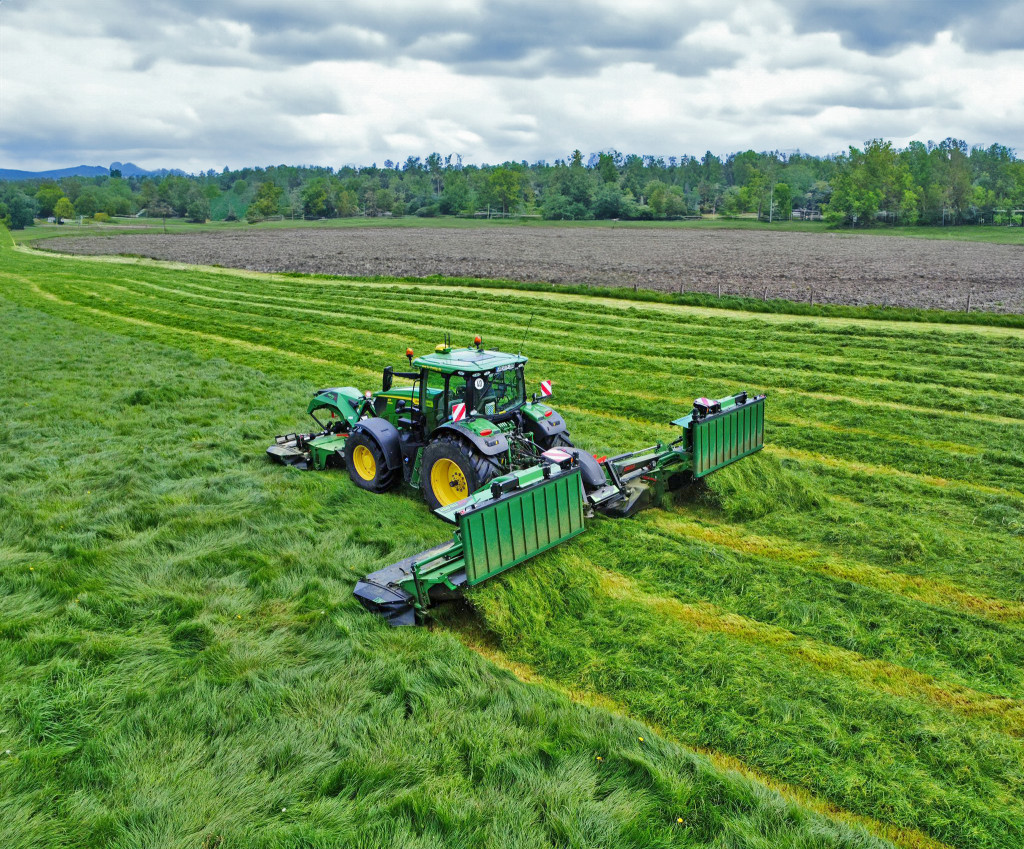

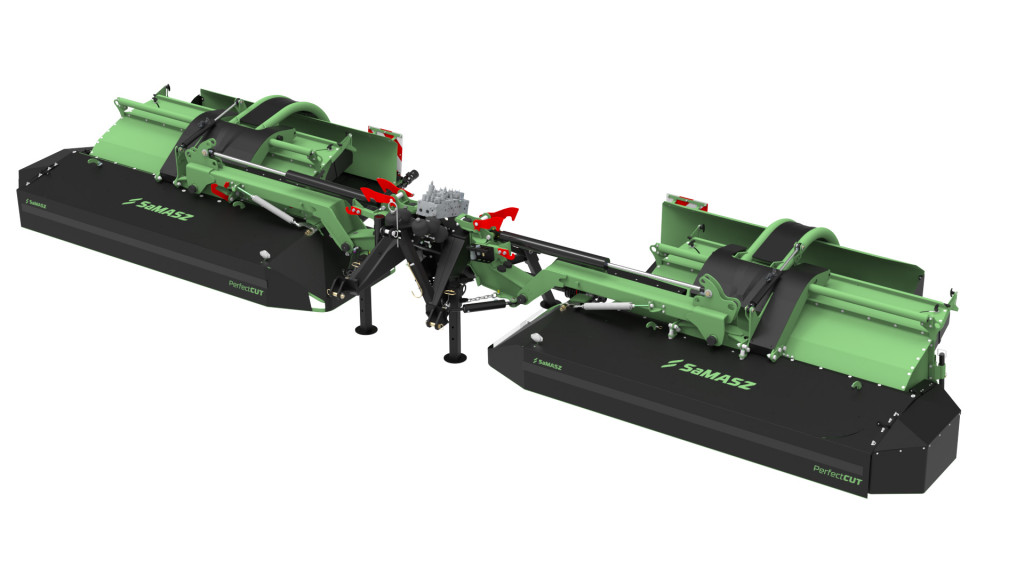

Two-sided discs mower with ISOBUS
The KDD STH ISOBUS double-sided rear mower is designed for demanding working conditions. Its ISOBUS compatibility allows all functions to be controlled from the tractor terminal, ensuring optimal comfort.
Share:
Print:
Do you want us to help you to search?
If you prefer us to find the most suitable machine for your needs, you just have to ask us. Together we will find YOUR MACHINE!!
Send inquiry
| Technical data | ||||
|---|---|---|---|---|
| Model | KDD 861 STH ISOBUS | KDD 911 STH ISOBUS | KDD 941 STH ISOBUS | |
| Working Width | 8.60 | 9.10 | 9.4 | |
| Transport Width | 3.00 | 3.00 | 3 | |
| Transport Height | 3.80 | 3.90 | 3.9 | |
| Swath Width | ~2 x 1.55 - 2.20 | ~2 x 1.90 - 2.30 | ~ 2 x 2.30 - 2.70 | |
| Number of Hydraulic Connections Required | LS Power Beyond | LS Power Beyond | LS Power Beyond | |
| Working Capacity | ~10.0 | ~10.5 | ~11.00 | |
| Number of Discs | 14 | 16 | 16 | |
| Number of Blades | 28 | 32 | 32 | |
| PTO Speed | 1 | 1 | 1000 | |
| Hitch Category | III | III | III | |
| Recommended Tractor Horsepower | from 200 | from 200 | from 220 | |
| Weight | 4120 | 4140 | 4,37 | |
| "Weight with ""H""" | 4120 | 4140 | 4,37 | |
| Drive Shaft (PTO) | tractor - mower: without clutch, construction: with friction overrunning clutch | tractor - mower: without clutch, construction: with friction overrunning clutch | tractor - mower: without clutch, construction: with friction overrunning clutch | |
| Windrower Guide | 4 (exterior, metal) | 4 (exterior, metal) | 4 (exterior, metal) | |
