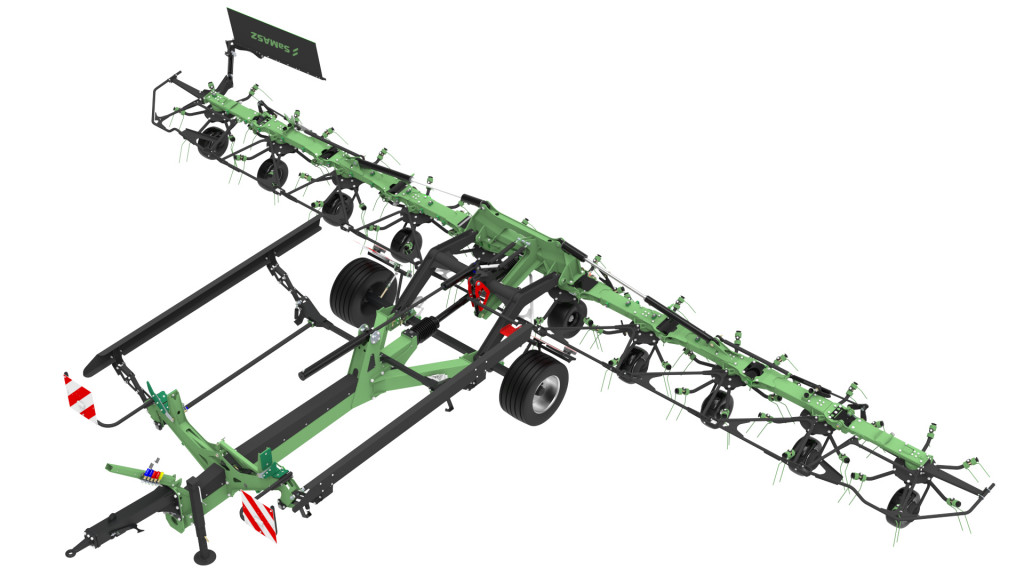

P10-1100T
Tedder - 10-rotor

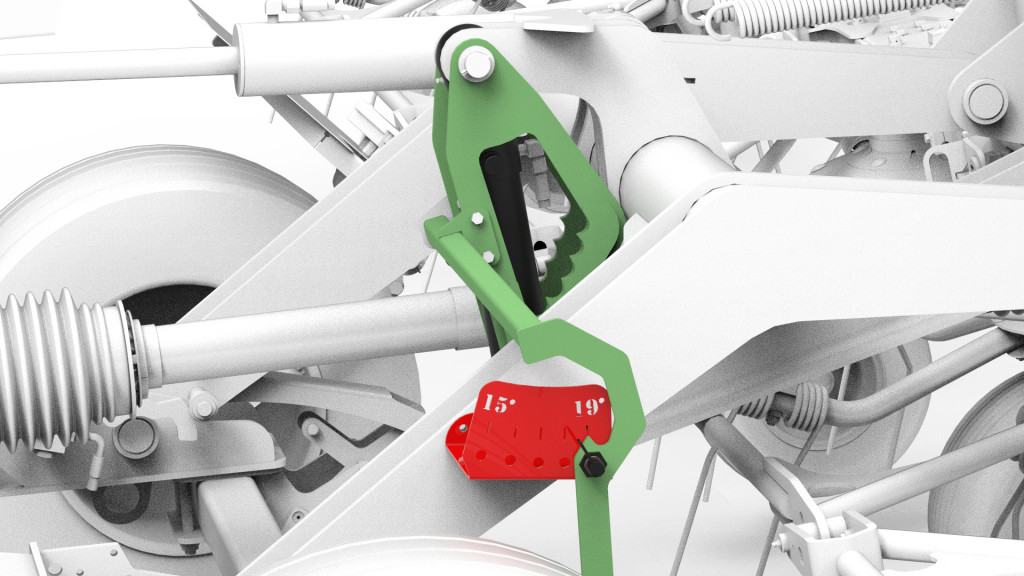

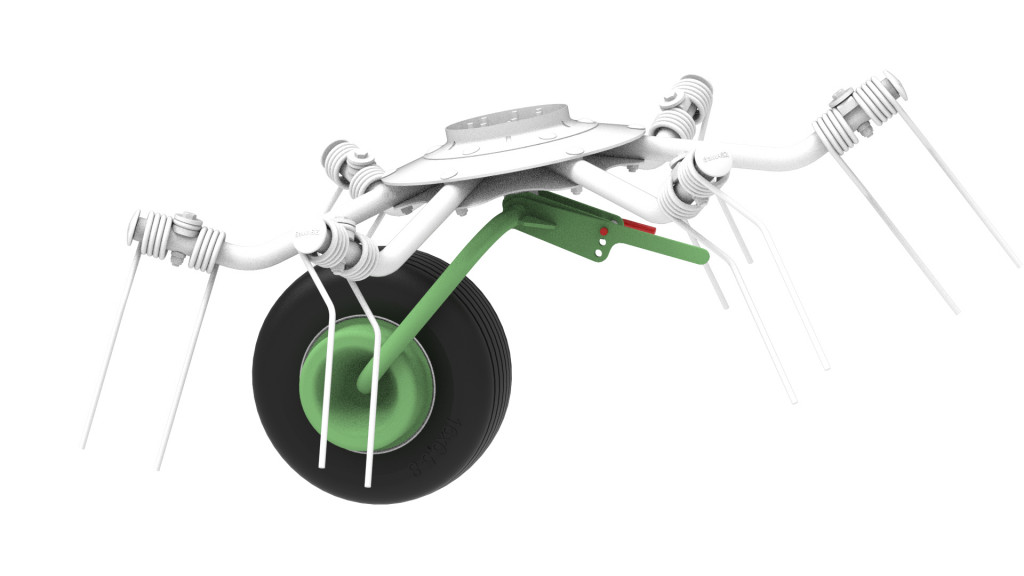

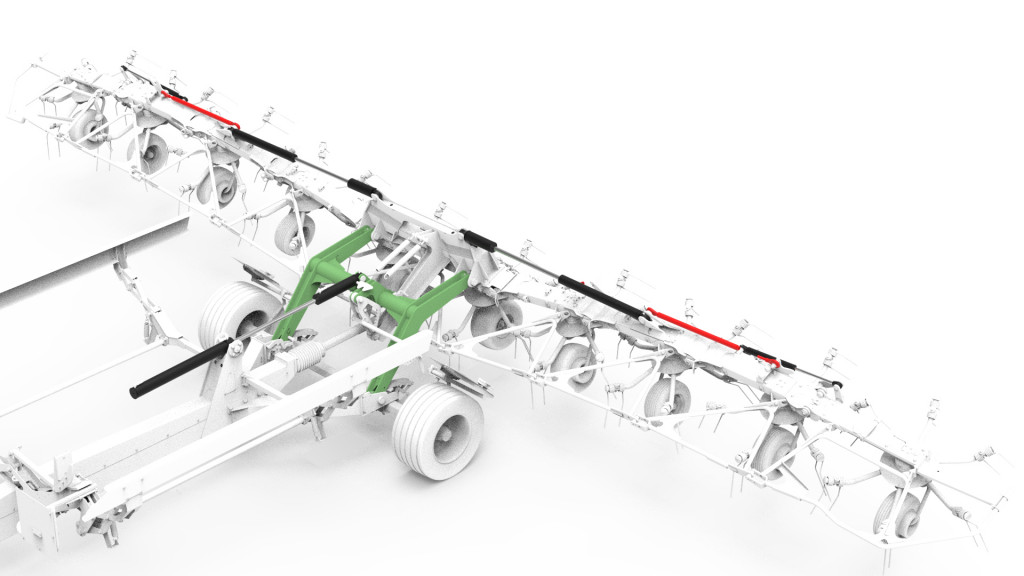

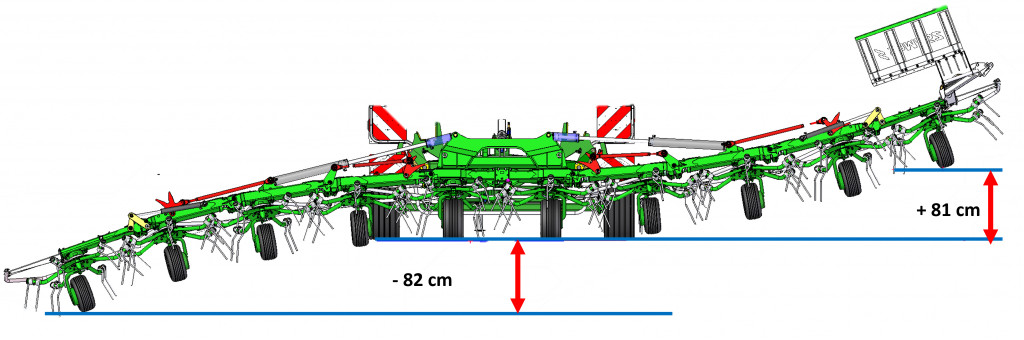

The SaMASZ P10-1100T trailed tedder has 10 rotors, each with 6 tine arms, giving a working width of 11 metres. In addition, the machine has innovative and patented systems to control the spreading angle and working height, as well as to manage headland turning, adapting to countless working conditions and terrains. All this with a maximum width of 3 metres and a height of 2.7 m for driving on roads.
Share:
Print:
Do you want us to help you to search?
If you prefer us to find the most suitable machine for your needs, you just have to ask us. Together we will find YOUR MACHINE!!
Send inquiry
| P10-1100T data | ||
|---|---|---|
| Working width [m] | 11,00 | |
| Transport width / height [m] | 3,00 / 2,70 | |
| Number of rotors [pcs.] | 10 | |
| Necessary hydraulic couplers | 1x double acting + 1x single acting | |
| Working capacity [ha/h / ac/h] | 13,10 / 32 | |
| Number of arms per rotor [pcs.] | 6 | |
| Diameter of rotor [m] | 152 | |
| RPM | 540 | |
| Hitch type | D40 | |
| Power demand [HP] | from 50 | |
| PTO shaft | tractor-tedder: wide-angle with overruning clutch, built-in: with overload clutch | |
| Tires | 18 x 8,5 - 8 x2 (central) / 16 x 6,5 - 8 x8 (side) / 340/55 - 16 x2 (transport) | |
| Weight [kg] | 2600 | |
