4060

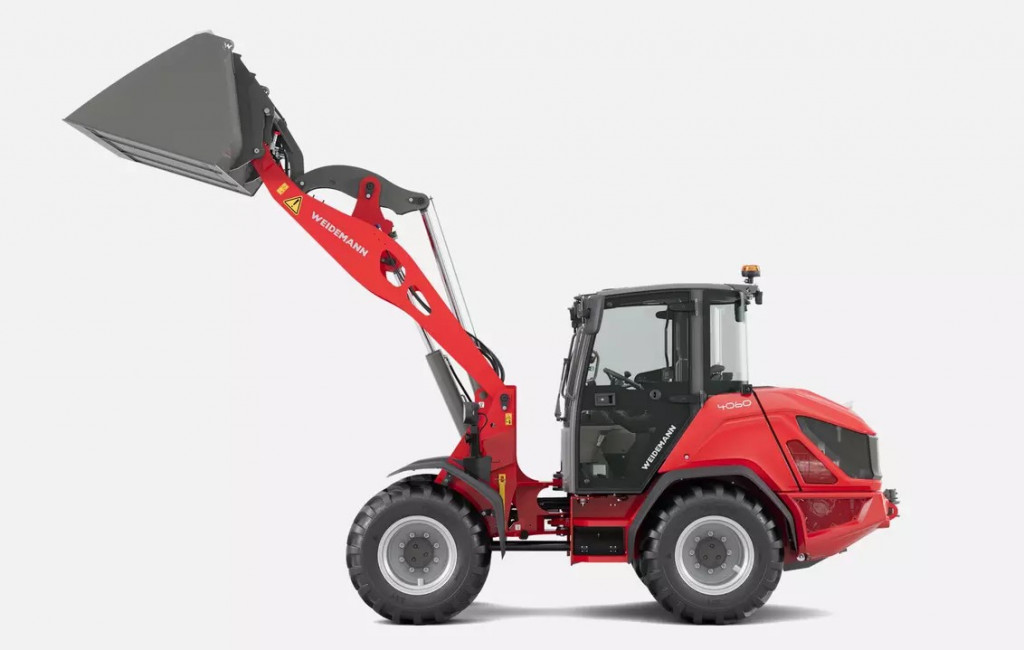

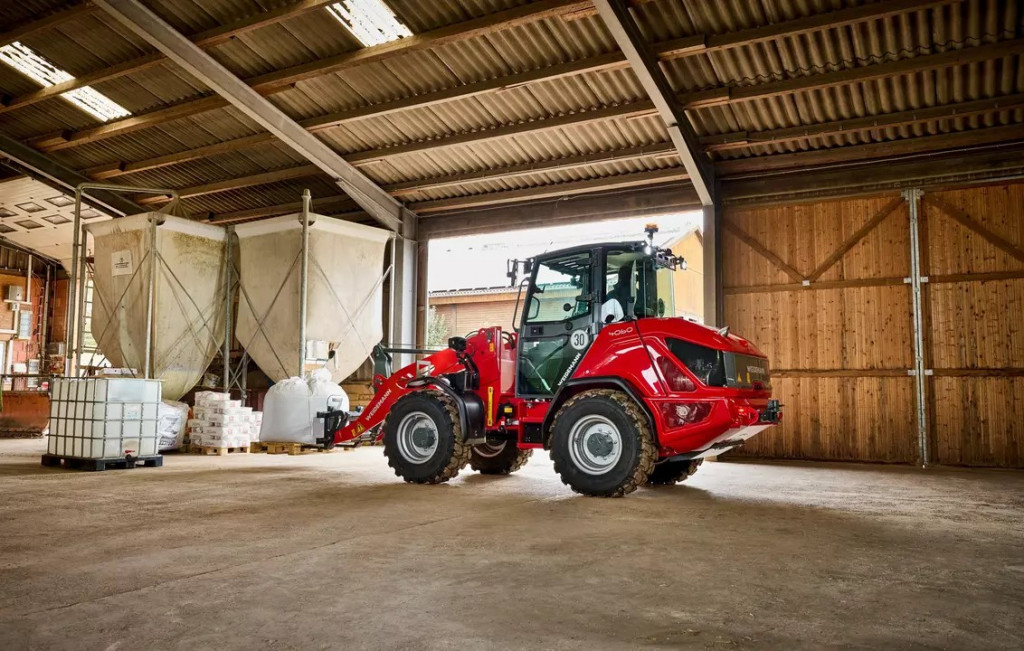

Wheel loader 4060
Next level: The 4060 wheel loader offers practical standard equipment and advanced technology. Its excellent price-performance ratio makes this machine a comfortable all-rounder. Thanks to its wide range of options, the machine can be perfectly adapted to your individual requirements and needs. One of the most striking features of the 4060 wheel loader is the particularly comfortable cab, which stands out for its excellent ergonomics and improved all-round visibility. The 60 series features the following features: easy entry and exit, electronic ecDrive with several driving modes, electric parking brake, robust center linkage with optimized hose routing, and excellent service access thanks to the transversely mounted engine and optimized component layout.
Share:
Print:
Do you want us to help you to search?
If you prefer us to find the most suitable machine for your needs, you just have to ask us. Together we will find YOUR MACHINE!!
Send inquiry
| Drive | ||
|---|---|---|
| Drive Type | ecDrive (Electronic Controlled Drive) | |
| Transmission | Hydrostatic with distribution gear and articulated axle | |
| Travel Speeds | 2 | |
| Axle | PA 1422 | |
| Standard Travel Speed | 0-20 km/h | |
| Option 1 Travel Speed | 0-30 km/h | |
| Service Brake | Disc brake (optional: multi-disc brake) | |
| Parking Brake | Disc brake (optional: multi-disc brake) | |
| Differential Lock | 100% on the front axle + rear axle | |
| Driver´s cab | ||
|---|---|---|
| Driver's cab | Cabin | |
| Kinematics | ||
|---|---|---|
| Kinematics type | Z | |
| Lift cylinder | 1 | |
| Tipping cylinder | 1 | |
| Quick-change system | Hydraulic | |
| Standard engine data | ||
|---|---|---|
| Engine Manufacturer | Kohler | |
| Engine Model | KDI 2504 TCR | |
| Number of Cylinders | 4 | |
| Engine Power | 55.4 kW | |
| Engine Power | 75 CV | |
| At Max. RPM | 2,300 rpm | |
| Max. Torque | 315 Nm | |
| Displacement | 2,482 cm³ | |
| Coolant Type | water | |
| Emissions Standard | V | |
| Exhaust Aftertreatment | DOC/DPF | |
| Engine data | ||
|---|---|---|
| Engine Manufacturer | Kohler | |
| Engine Model | KDI 2504 TCR | |
| Number of Cylinders | 4 | |
| Engine Power | 55.4 kW | |
| Engine Power | 75 CV | |
| At Max. RPM | 2,300 rpm | |
| Max. Torque | 315 Nm | |
| Displacement | 2,482 cm³ | |
| Coolant Type | water | |
| Emissions Standard | V | |
| Exhaust Aftertreatment | DOC/DPF | |
| Dimensions | ||
|---|---|---|
| Standard Tires | 405 / 70 R20 BKT 513 ET30 | |
| Overall Length | 6.115 mm | |
| Overall Length without Bucket | 5.275 mm | |
| Bucket Pivot Point (to center of axle) | 1.530 mm | |
| Wheelbase | 2.150 mm | |
| Rear Overhang | 1.435 mm | |
| Height with Cab | 2.535 mm | |
| Seat Height | 1.510 mm | |
| Overall Working Height | 4.580 mm | |
| Bucket Pivot Point (maximum lift height) | 3.700 mm | |
| Usable Dump Height | 3.450 mm | |
| Dump Height | 2.815 mm | |
| Reach (with M) | 1.065 mm | |
| Digging Depth | 80 mm | |
| Overall Width | 1.770 mm | |
| Track Width | 1.360 mm | |
| Ground Clearance | 390 mm | |
| Maximum Radius | 4.645 mm | |
| Outer Edge Turning Radius | 3.990 mm | |
| Inner Radius | 2.100 mm | |
| Articulated Joint Angle | 40 ° | |
| Setback Angle at Maximum Lift Height | 63 ° | |
| Dump Angle | 45 ° | |
| Setback Angle on Ground | 47 ° | |
| Enviar comentarios | Enviar comentarios | |
| Paneles laterales | Paneles laterales | |
| Historial | Historial | |
| Guardado | Guardado | |
| Address | ||
|---|---|---|
| Steering Type | Hydraulic pendulum articulated joint | |
| Steering Cylinder | 1 | |
| Oscillation Angle | ± 10 degrees | |
| Noise emission parameters | ||
|---|---|---|
| Average sound power level LwA (booth) | 99,8 dB(A) | |
| Guaranteed sound power level LwA (booth) | 101 dB(A) | |
| Indicated sound pressure level LpA (booth) | 71 dB(A) | |
| Weights | ||
|---|---|---|
| Operating weight | 5.700 - 6.100 kg | |
| Digging force (max.) | 5.950 daN | |
| Lifting force (max.) | 4.190 daN | |
| Tipping load with bucket - straight machine, horizontal scissor lift | 3.220 - 3.450 kg | |
| Tipping load with bucket - articulated machine, horizontal scissor lift | 2.760 - 2.960 kg | |
| Tipping load with bucket - straight machine, scissor lift in the lower position | 4.234 - 4.526 kg | |
| Tipping load with bucket - articulated machine, scissor lift in the lower position | 3.643 - 3.901 kg | |
| Tipping load with pallet forks - straight machine, horizontal scissor lift | 2.870 - 3.067 kg | |
| Tipping load with pallet forks - articulated machine, horizontal scissor lift | 2.480 - 2.654 kg | |
| Tipping load with pallet forks - straight machine, transport position | 3.337 - 3.557 kg | |
| Tipping load with pallet forks - articulated machine, transport position | 2.892 - 3.086 kg | |
| Electrical system | ||
|---|---|---|
| Operating voltage | 12 V | |
| Battery | 100 Ah | |
| Generator | 120 A | |
| Hydraulic system | ||
|---|---|---|
| Operating hydraulics operating pressure (max.) | 500 bar | |
| Working hydraulics flow rate (max.) | 73,4 (91,1) l/min. | |
| Working hydraulics operating pressure (max.) | 235 bar | |
| Volumes | ||
|---|---|---|
| Fuel tank capacity | 80 l | |
| Hydraulic oil tank capacity | 32 l | |
