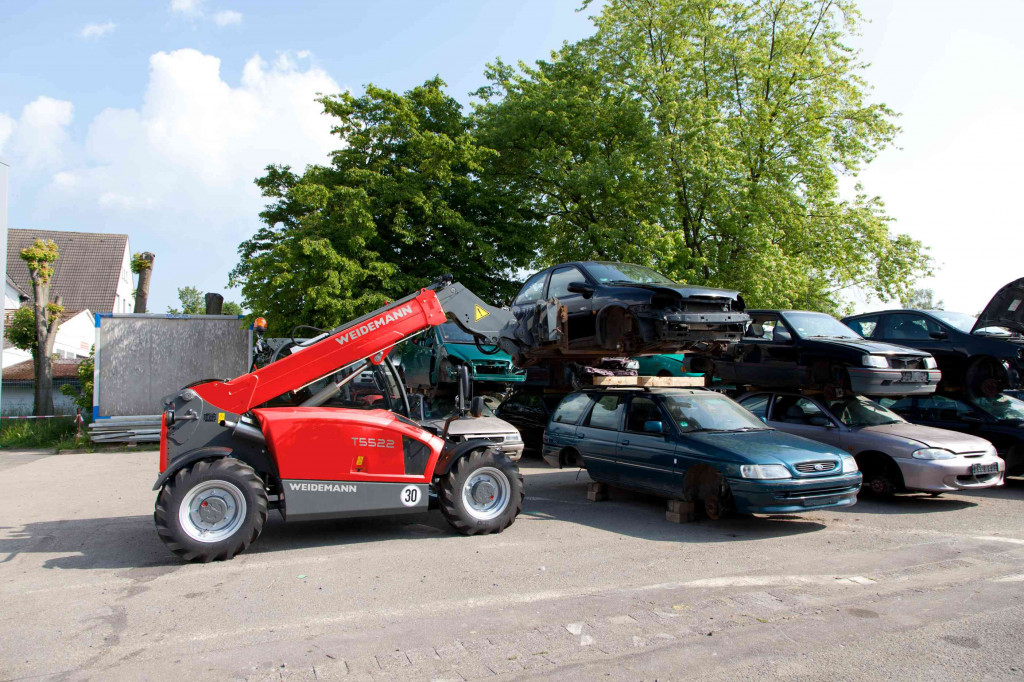

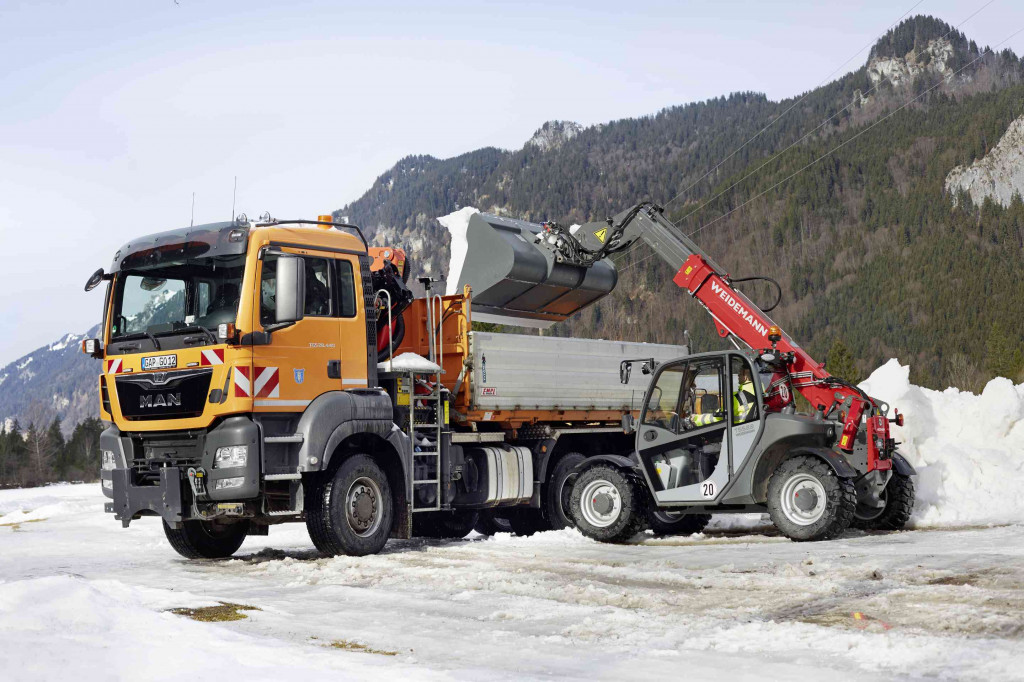

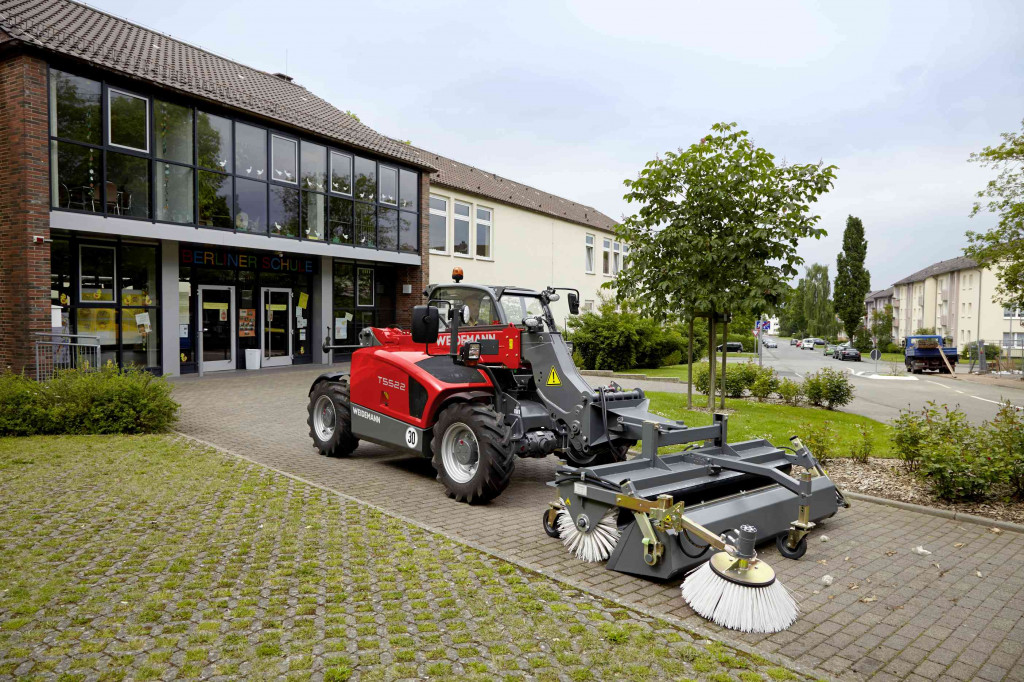

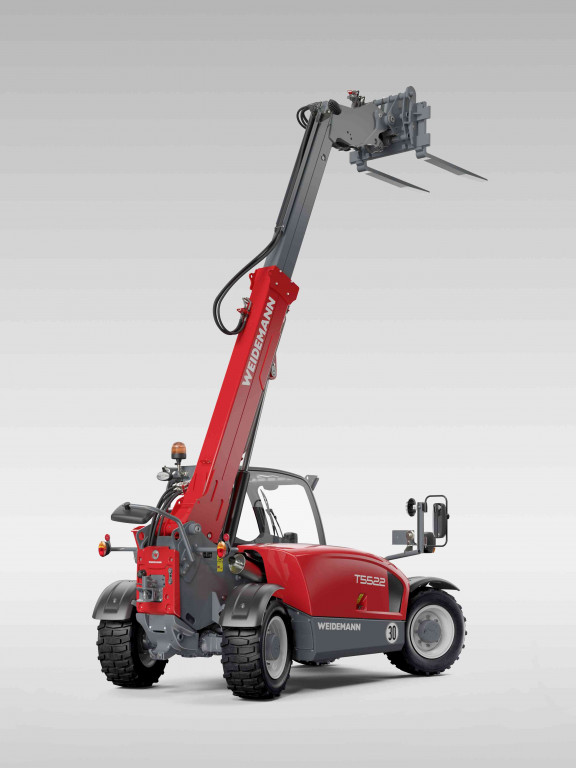

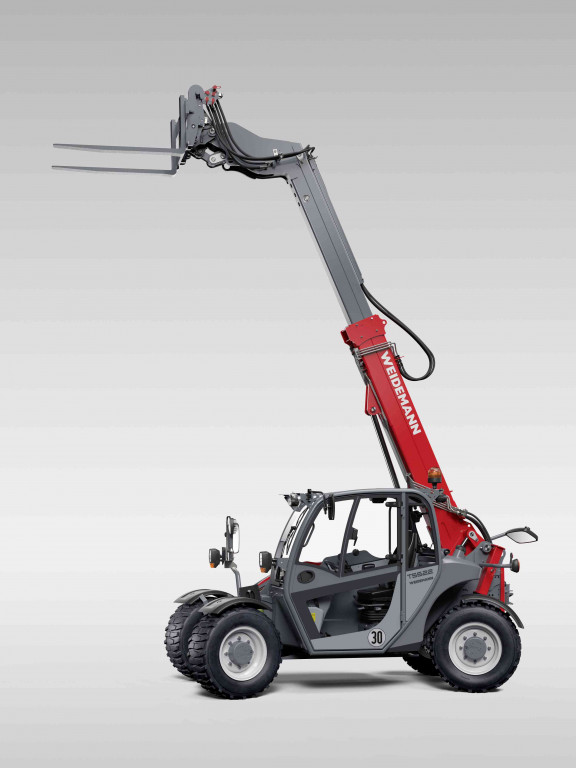

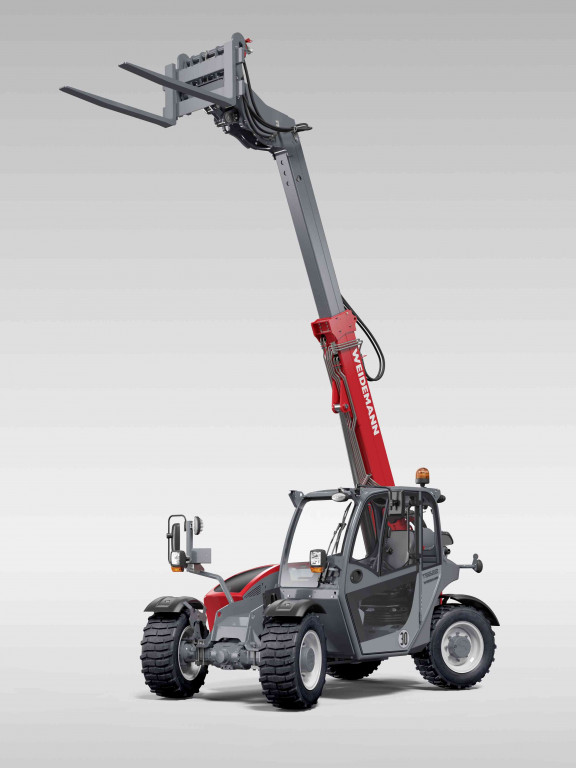

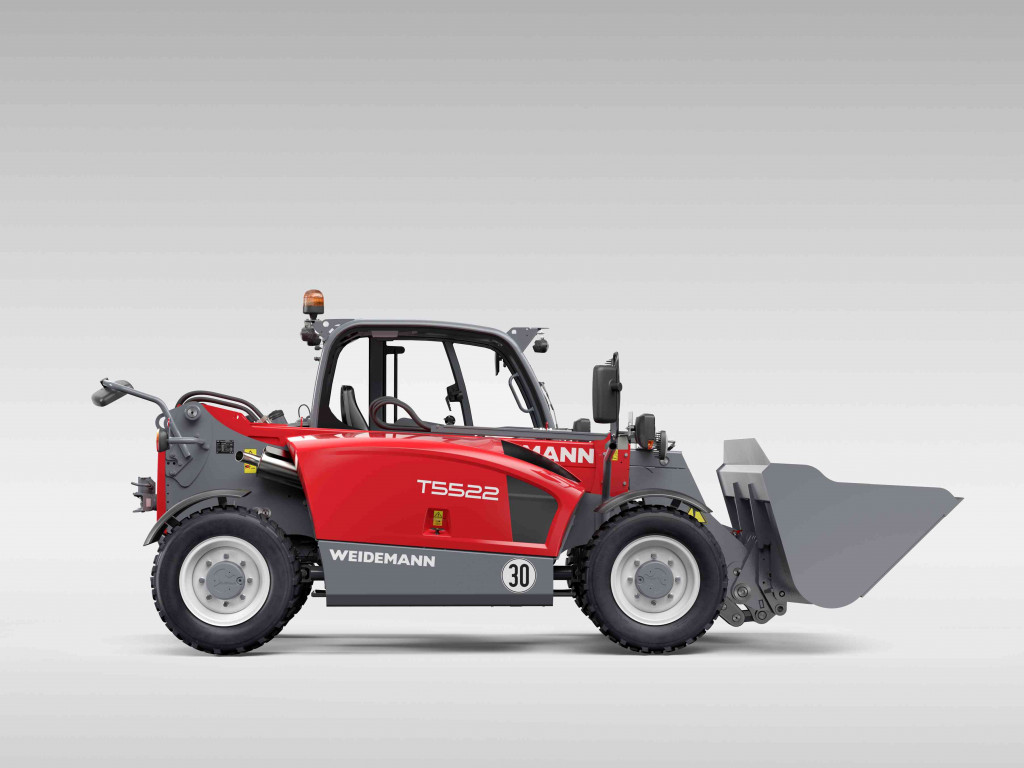

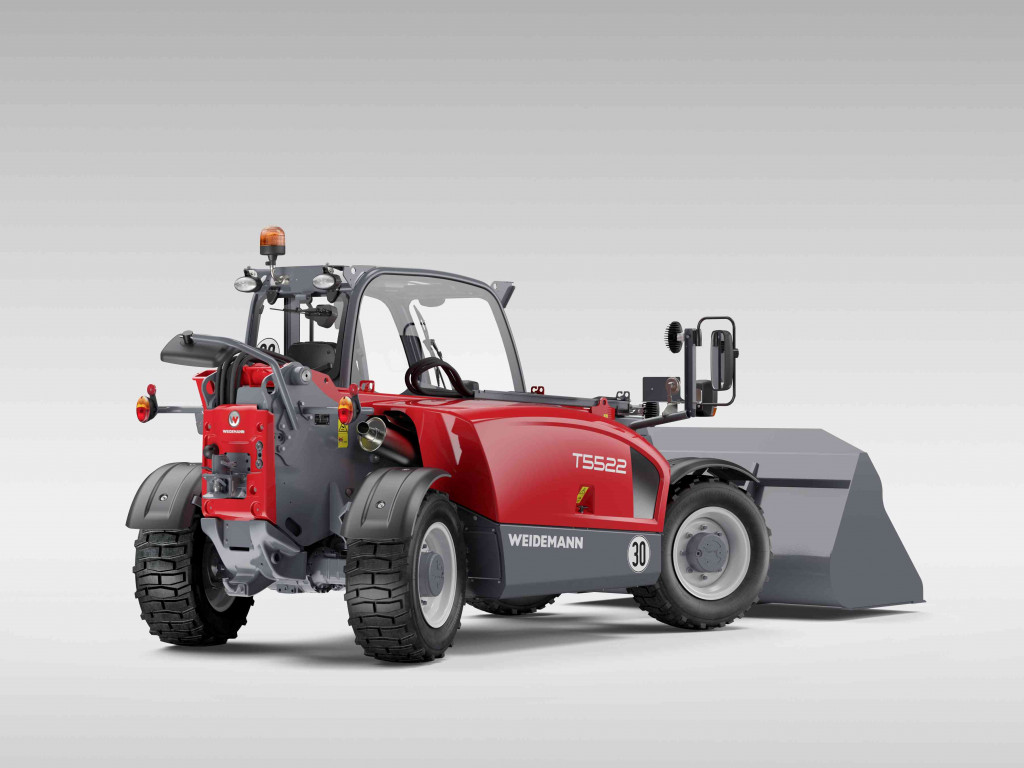

T5522
Telehandler
Weidemann compact telehandlers are unique in their combination of loading height, width and power. Thanks to the four-wheel drive and steering, they are fully stable and ready for different tasks.
Share:
Print:
Do you want us to help you to search?
If you prefer us to find the most suitable machine for your needs, you just have to ask us. Together we will find YOUR MACHINE!!
Send inquiry
| Engine data | ||
|---|---|---|
| Manufacturer | Perkins | |
| Model | 404J-E22T | |
| Engine output [kW / CV] | 45 / 61 | |
| At maximum rpm [rpm] | 2800 | |
| Cylinders [units] | 4 | |
| Displacement [cm3] | 2200 | |
| Cooling | Water | |
| Exhaust standard | Stage V | |
| Exhaust after-treatment | DPF1 + DOC2 | |
1 DPF: Diesel particulate filter
2 DOC: Diesel oxidation catalytic converter
| Speed | ||
|---|---|---|
| Level 1 [km/h] | 7 | |
| Level 2 [km/h] | 20 | |
| Operating data | ||
|---|---|---|
| Operating weight [kg] | 4200 | |
| Payload | ||
|---|---|---|
| Payload at max. lifting height [daN] | 2200 | |
| Payload at max. coverage [daN] | 1000 | |
| Coverage at maximum load [mm] | 1442 | |
| Hydraulic | ||
|---|---|---|
| Lift cylinder [units] | 1 | |
| Tipping cylinder [units] | 1 | |
| Work hydraulics pressure [bar] | 225 | |
| Work hydraulics discharge volume [l/min] | 70 | |
| Driving hydraulics working pressure [bar] | 450 | |
| Steering system | ||
|---|---|---|
| Steering | Hydraulic all-wheel steering | |
| Ángulo de giro máx. [º] | 2 x 40 | |
| Ángulo de oscilación eje trasero [º] | ± 8 | |
| Cilindro de dirección [units] | 2 | |
| Filling volumes | ||
|---|---|---|
| Fuel tank capacity [l] | 70 | |
| Hydraulic oil tank [l] | 55 | |
| Electrical system | ||
|---|---|---|
| Operating voltage [V] | 12 | |
| Battery isolator switch | ||
| Dimensions | ||
|---|---|---|
| Overall length (bucket) [mm] | 4576 | |
| Overall length (pallet fork) [mm] | 5065 | |
| Total length without bucket [mm] | 3747 | |
| Center of axle up to the bucket pivot point [mm] | 581 | |
| Wheel base [mm] | 2449 | |
| Height with cabin [mm] | 1950 | |
| Seating height [mm] | 962 | |
| Total working height [mm] | 6074 | |
| Max. height of the bucket pivot point [mm] | 5471 | |
| Overhead loading height with bucket [mm] * | 3638 / 5056 | |
| Overhead loading height with pallet fork [mm] * | 3738 / 5156 | |
| Dumping height [mm] * | 3103 / 4520 | |
| Scraping depth [mm] | 111 | |
| Total width [mm] | 1808 | |
| Lane width [mm] | 1530 | |
| Ground clearance [mm] | 256 | |
| Maximum radius (bucket) [mm] | 4153 | |
| Maximum radius (pallet fork) [mm] | 4173 | |
| Radius on the outer edge [mm] | 3281 | |
| Inside radius [mm] | 1193 | |
| Rollback angle at max. lift height [º] | 46,5 | |
| Max. angle for bucket emptying [º] | 34,5 | |
| Rollback angle on the ground [º] | 41 | |
* Retracted / extended
All values with 10.5 / 80- AS ET0 tires, 1.900 mm dirt bucket, 1.200 mm pallet fork
