BATRAKE
Hay rake

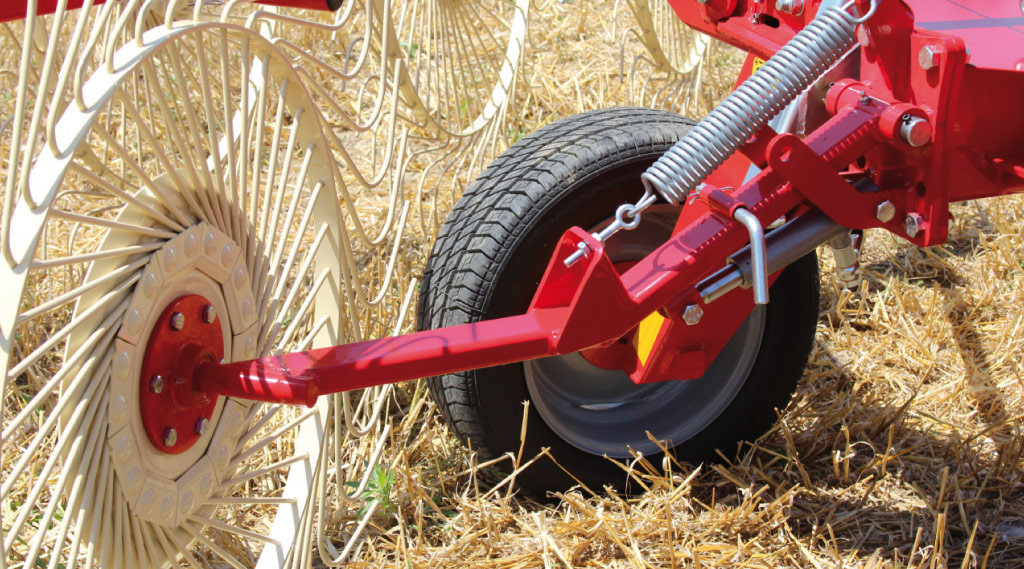

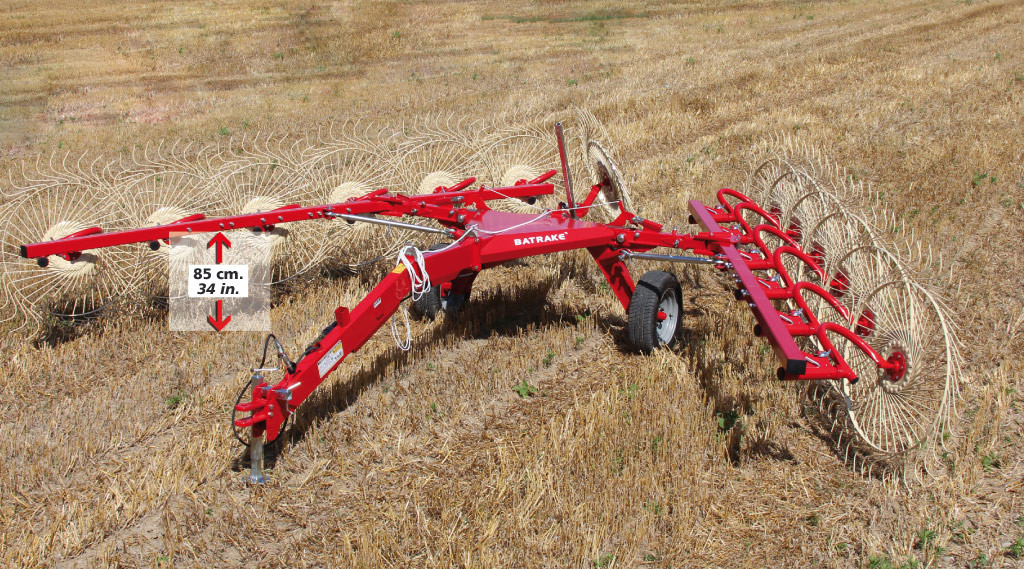

The BATRAKE is a robust and high performance hay rake. Each arm has independent movement, which facilitates adaptation to the ground and formation of the row, even on uneven terrain. The EASYJOB® system with single-acting cylinders for opening and closing the machine allows the operator to control all functions directly from the tractor cab. The 85 cm of ground clearance allows working in heavy hay conditions.
Share:
Print:
Do you want us to help you to search?
If you prefer us to find the most suitable machine for your needs, you just have to ask us. Together we will find YOUR MACHINE!!
Send inquiry
| Machine data | ||||
|---|---|---|---|---|
| Model | BATRAKE 8 | BATRAKE 10 | BATRAKE 12 | |
| Working width [cm] | 500 - 560 | 560 - 660 | 600 - 740 | |
| Row widht [cm] | 50 - 200 | 50 - 200 | 50 - 200 | |
| Transport dimensions - L x W - [cm] | 570 x 250 (275) | 570 x 250 (275) | 650 x 250 (275) | |
| No. of raking wheels / teeths [units] | 8 / 40 (320) | 10 / 40 (400) | 12 / 40 (480) | |
| Transport tires | 2x 205/70-15 | 2x 205/70-15 | 2x 205/70-15 | |
| Required power [HP] | 40 | 50 | 50 | |
| Weight [kg] | 680 | 780 | 890 | |
