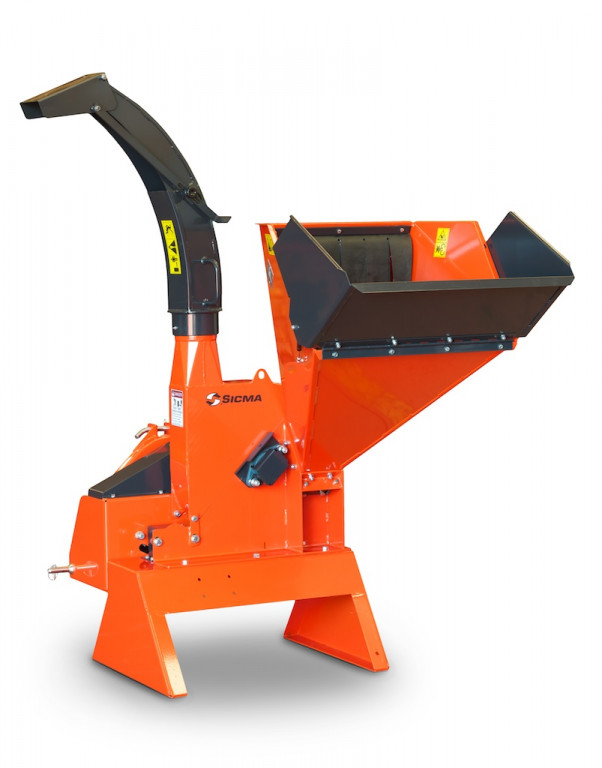

EC 100

Professional chipper

Sicma's "ECOCHIPPER" professional chippers are available in two versions: with manual top feed (EC 100), or with hydraulic feed and no-stress device (EC 100 HY). Both models are equipped with an electronically balanced disc to avoid vibrations; with tempered steel blades and double cutting surface, positioned radially on the disc and assembled in a misaligned way for a longer life and a more efficient use of the cutting capacity; and with ventilation blades to facilitate the discharge of the material. The discharge is carried out by means of a reinforced and 360º orientable ejection tube, with an adjustable deflector with a lever to guide the deposition of the material.
EC 100 - Professional chipper
+ Information
Machine data
ModelEC 100EC 100 HY PTO
Total dimensions [mm]1150 x 1250 x 19201150 x 1250 x 1920
Max. splinter diameter [mm]100100
Chipper mouth [mm]700 x 700700 x 700
Radial blades [pcs.]4 x 42,3 m/s4 x 42,3 m/s
Disc rotor32 mm / Ø 505 mm / 50 kg / 1700 rpm32 mm / Ø 505 mm / 50 kg / 1700 rpm
Required power [HP]2020
PTO [rpm]540540
Weight [kg]276350
