SD

Tiller

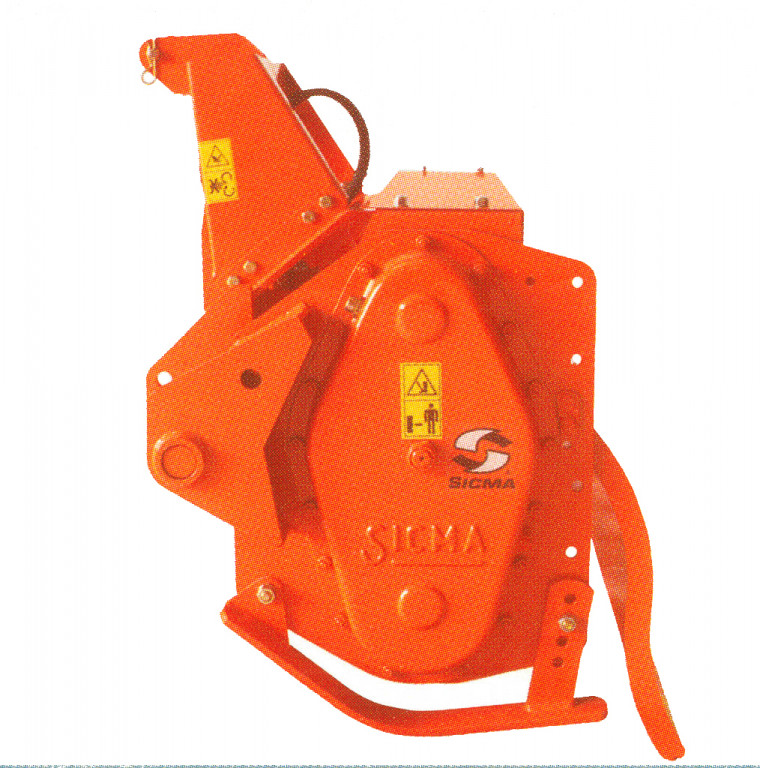

The RD model fits into the segment of medium-heavy mobile tillers. Displacement is mechanical as standard, but hydraulic is available as an option. This series mounts 1-speed rotor with lateral transmission by gears in oil bath, and is focused on working with tractors from 35 to 60 HP. The box-shaped chassis, the powder coating, and the permanent "Long Life" locking system on the rotor support bearings, guarantee the robustness, performance and durability of the machine. It is an ideal equipment for working in areas of land impossible to reach with a fixed tiller, such as vineyards, fruit orchards or orchards.
AUSAMA
AUSAMA
SD - Tiller
Filter
+ Information
Machine data
ModelSD 135SD 150SD 160SD 185SD 210
Working width [cm]135150160185210
Total width [cm]146161171196221
Distance from hitch point to side -left. / right- [cm]35 / 3542 / 4242 / 4255 / 5565 / 65
Discs [pcs.]56678
Blades [pcs.]3036364248
Required power [HP]35 - 6035 - 6035 - 6035 - 6035 - 60
PTO [rpm]540540540540540
Weight [kg]390410430460490
