SAMBA

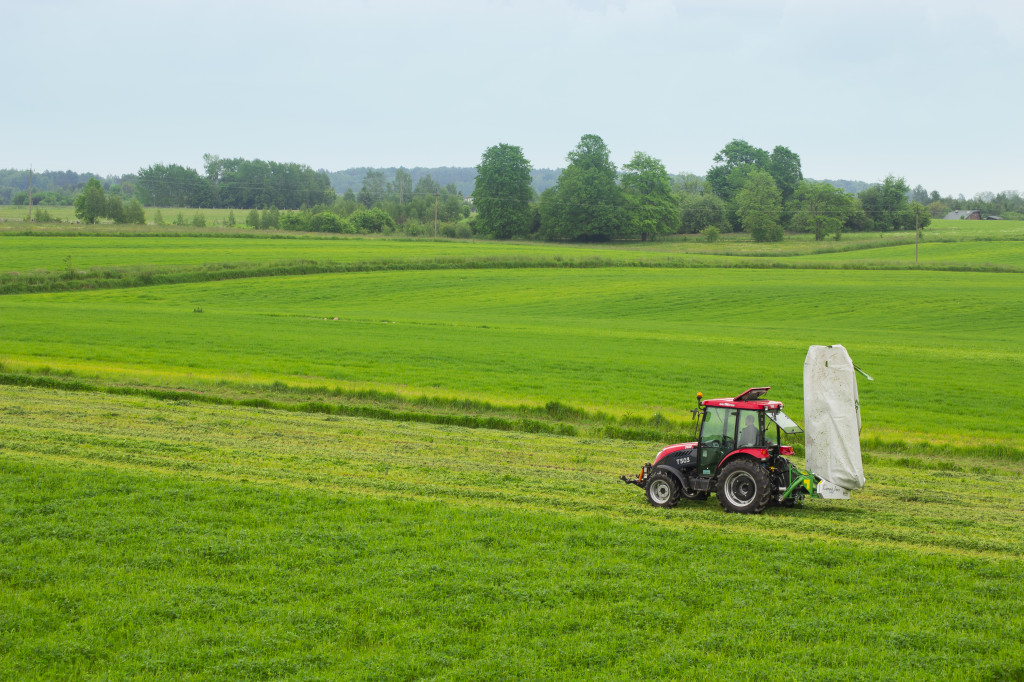

Discs mower - rear
The rear disc mowers, of the light series - SAMBA, with working widths from 1.60 to 3.20 m are designed to work on the smallest farms. They work very well in mountainous and humid terrain where the weight of the machine and the tractor matter a lot. The advantage of this mower is the low power demand - for the 2 m mower a 30 hp tractor is enough.
Share:
Print:
Do you want us to help you to search?
If you prefer us to find the most suitable machine for your needs, you just have to ask us. Together we will find YOUR MACHINE!!
Send inquiry
| Machine data | ||||||
|---|---|---|---|---|---|---|
| Model | SAMBA 160 | SAMBA 200 | SAMBA 240 | SAMBA 280 | SAMBA 320 | |
| Working width [m] | 1,6 | 2 | 2,4 | 2,8 | 3,2 | |
| Transport width / height [m] | 1,70 / 2,45 | 1,70 / 2,85 | 1,70 / 3,20 | 1,70 / 3,60 | 1,70 / 3,95 | |
| Swath width [m] | ~ 1,10 | ~ 1,50 | ~ 1,70 | ~ 2,20 | ~ 2,60 | |
| Necessary hydraulic couplers | 1x single acting | 1x single acting | 1x single acting | 1x single acting | 1x single acting | |
| Working capacity [ha/h / ac/h] | ~ 1,50 / ~ 3,70 | ~ 2,00 / ~ 5,00 | ~ 2,50 / ~ 6,20 | ~ 3,00 / ~ 7,00 | ~ 3,50 / ~ 8,70 | |
| Number of discs / Number of knives [pcs.] | 4 / 8 | 5 / 10 | 6 / 12 | 7 / 14 | 8 / 16 | |
| RPM | 540 | 540 | 540 | 540 | 540 (1000 option) | |
| 3-point hitch cat. | II / I as option | II / I as option | II | II | II | |
| Power demand [HP] | from 25 | from 30 | from 45 | from 60 | from 75 | |
| Weight [kg] | 410 | 445 | 490 | 520 | 580 | |
| PTO shaft | tractor-mower: with overruning clutch | tractor-mower: with overruning clutch | tractor-mower: with overruning clutch | tractor-mower: with overruning clutch | tractor-mower: with overruning clutch | |
| Rubber swath guide - single | Swath sheet [outer] | Swath sheet [outer] | Swath sheet [outer] | Swath sheet [outer] | Swath sheet [outer] | |
