ENODUO 610

Rotor rake - 2-rotor

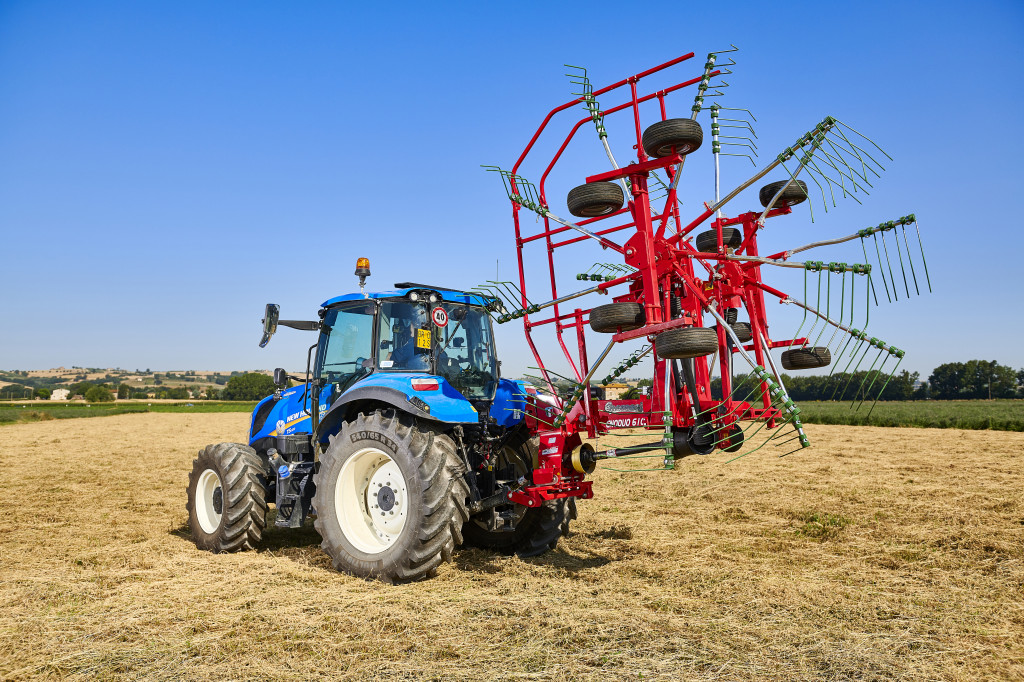

In the ENODUO rake, the product moves only once, avoiding the loss of leaves and contamination, keeping the quality of the forage intact. This model adapts to small / medium tractors, and when suspended offers greater maneuverability. The rotors are hydraulically raised and locked during transport. A standout quality of this rake is the ability to move the remaining forage in the center of the rake. Thus, the central row formed is uniform, with a structure that favors ventilation and the subsequent recovery of the rake. This is possible due to the crossing of their arms and the reduced distance between them.
AUSAMA
AUSAMA
ENODUO 610 - Rotor rake - 2-rotor
Filter
+ Information
Machine data
Working width [cm]610
Average row width [cm]90
Transport dimensions -L x W x H- [cm]330 x 255 x 355
Rotor Ø [cm]310
Arms per rotor [pcs.]9
No. of double tines [pcs.]54
Required power [HP]100 - 120
Weight [kg]1110
Hydraulic connections required 1x double acting
Tires4x 16.650-8
