Z2
Rotor rake - 2-rotor

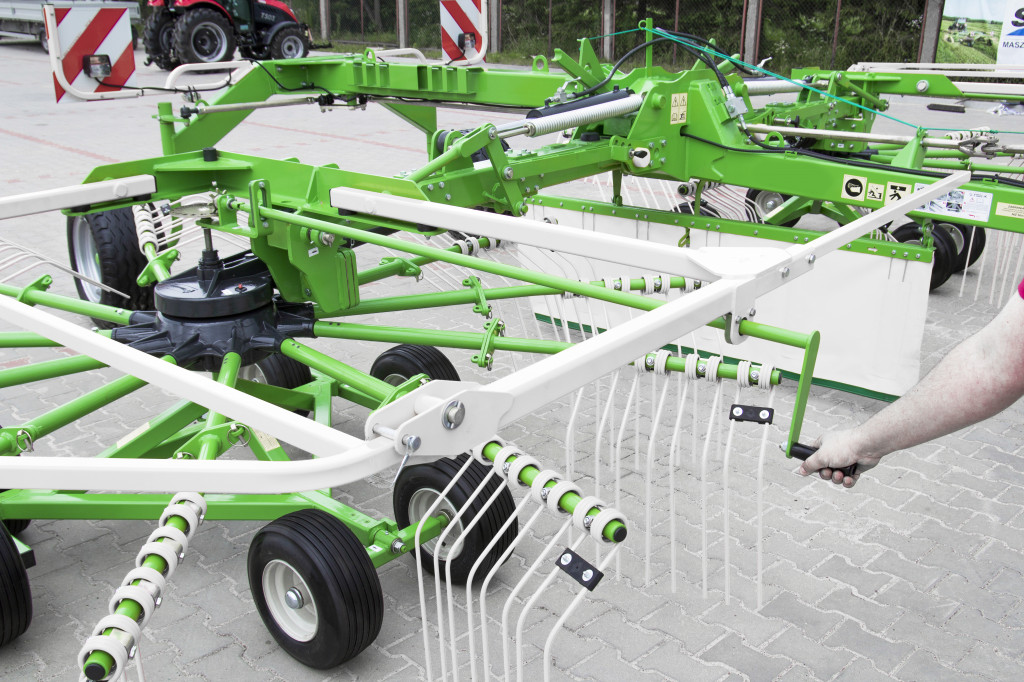

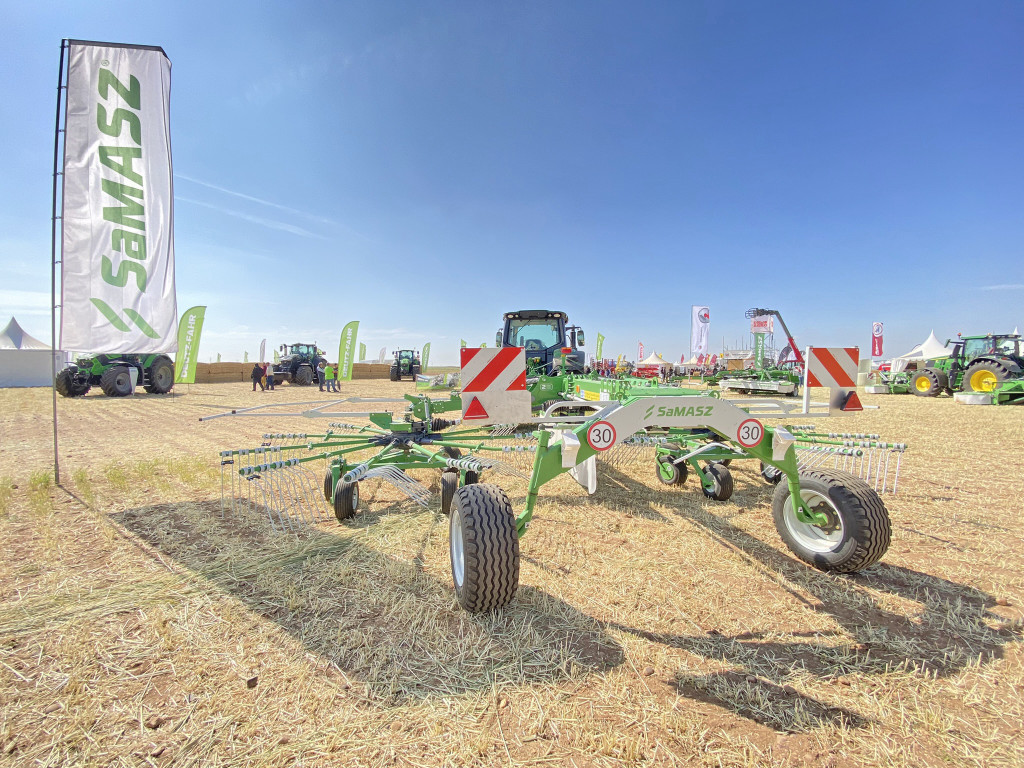

The Z2-series twin-rotor rakes are characterized by high crop quality, as the two-dimensional ground-following mechanism provides cleaner raking. The Z2-780 model is capable of raking green forage in a working width of 7.2 to 7.6 m, while the Z2-840 does it from 7.6 to 8.4 m. The rake rotors are hydraulically raised into transport position and the main frame is strong and durable, allowing it to drive on public roads.
Share:
Print:
Do you want us to help you to search?
If you prefer us to find the most suitable machine for your needs, you just have to ask us. Together we will find YOUR MACHINE!!
Send inquiry
| Machine data | |||
|---|---|---|---|
| Model | Z2-780 | Z2-840 | |
| Working width [m] | 7,20 - 7,60 | 7,60 - 8,40 | |
| Windrow width [m] | 1,50 - 2,00 | 1,20 - 2,00 | |
| Diameter of rotor with arms [m] | 3,30 | 3,65 | |
| Transport width [m] | 2,90 | 3,00 | |
| Transport height with / without arms [m] | 3,40 / 4,10 | 3,75 / 4,35 | |
| Necessary hydraulic couplers | 1x single acting | 1x single acting + 1x double acting | |
| Working capacity [ha/h / ac/h] | ~ 8,00 / 20,00 | ~ 9,00 / 22,00 | |
| Number of arms per rotor [pcs.] | 11 | 11 | |
| Number of removable arms per rotor for transport [pcs.] | 4 | 4 | |
| Number of tines per arm [pcs.] | 4 | 4 | |
| RPM | 540 | 540 | |
| Recommended RPM | 350-450 | 350-450 | |
| 3-point hitch cat. | II | II | |
| Power demand [HP] | from 60 | from 80 | |
| Tires (with inner tubes) | 16 x 6,5 - 8 (under the rotors) - 340/55 -16 (rear) | 16 x 6,5 - 8 (under the rotors) - 340/55 -16 (rear) | |
| Weight [kg] | 2040 | 2420 | |
| PTO shaft | tractor-rake: wide angle, built-in: 1. with freewheel clutch, 2. with overload clutch | tractor-rake: wide angle, built-in: 1. with freewheel clutch, 2. with overload clutch | |
| Windrow | central | central | |
