KDD

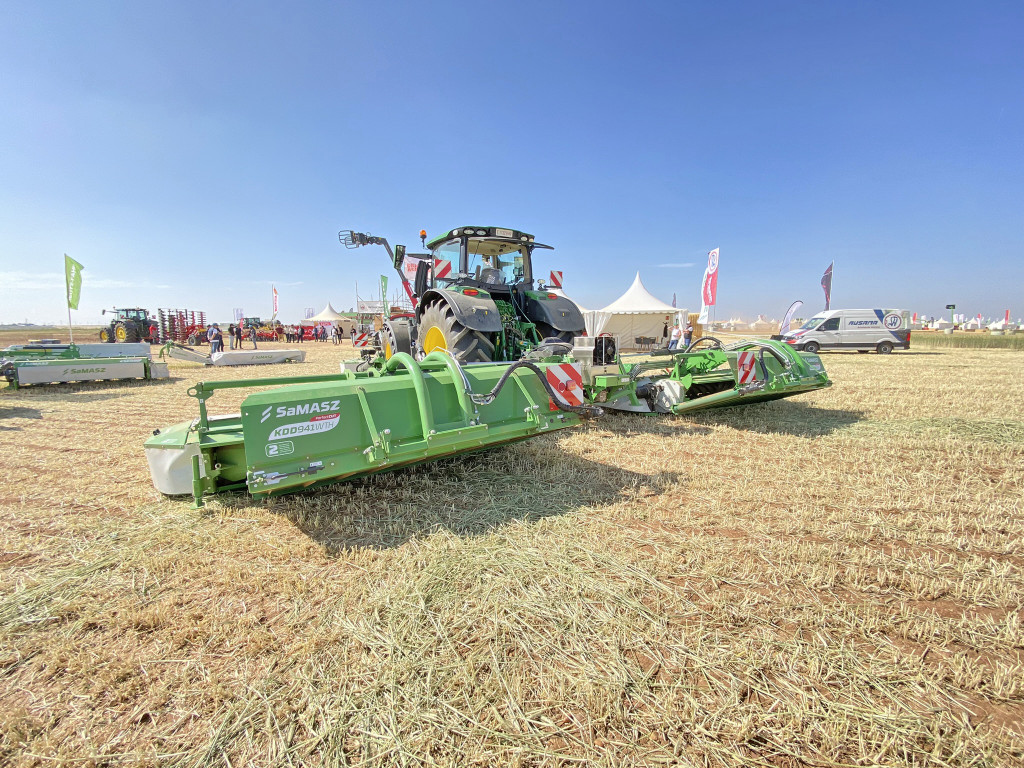

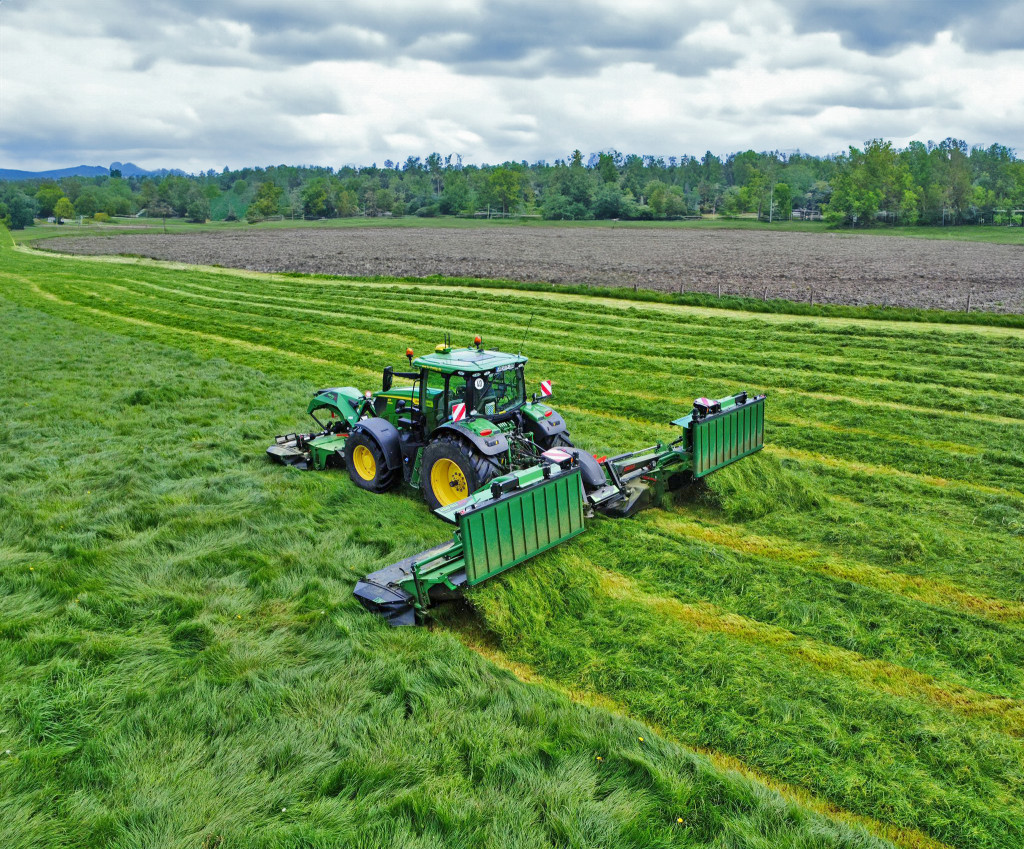

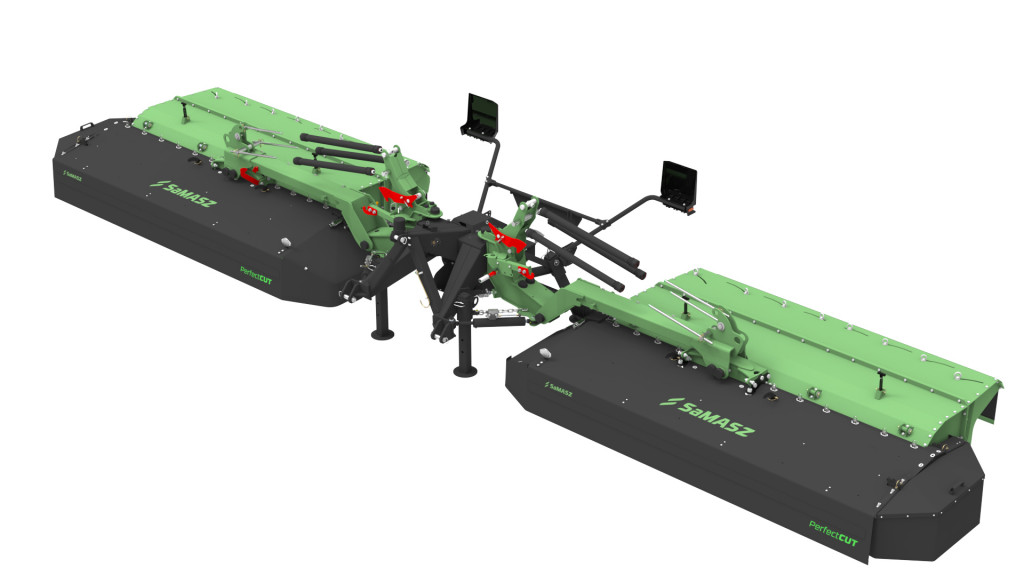

Two-sided discs mower
The mower kits are aimed at the most demanding farmers, who value their time and money. With a working efficiency from 10 ha/h and low power required from the tractor, the combination can be used even on medium-sized farms with a tractor from 150 HP of power. They are an excellent alternative to expensive self-propelled mowers, a perfect solution for large farms, in the most difficult areas and conditions possible. Thanks to its high productivity and working width, cutting large areas does not take a great deal of time.
Share:
Print:
Do you want us to help you to search?
If you prefer us to find the most suitable machine for your needs, you just have to ask us. Together we will find YOUR MACHINE!!
Send inquiry
| MegaCUT kit data (KDD without conditioner) | ||||
|---|---|---|---|---|
| Model | KDD 861 (H) | KDD 912 (H) | KDD 941 (H) | |
| Working width [m]* | 8,6 | 9,1 | 9,4 | |
| Transport width / height [m] | 3,00 / 3,80 | 3,00 / 3,9 | 3,00 / 4,00 | |
| Swath width [m] | 2x ~ 2,00 - 2,20 | 2x ~ 2,20 | 2x ~ 2,40 - 2,70 | |
| Necessary hydraulic couplers | 3x single acting (with panel 1x single acting) | 3x single acting (with panel 1x single acting) | 3x single acting (with panel 1x single acting) | |
| Working capacity [ha/h / ac/h]* | ~ 10,00 / ~ 25,00 | ~ 10,50 / ~ 27,00 | ~ 11,00 / ~ 27,00 | |
| Number of discs / Number of knives [pcs.] | 14 / 28 | 16 / 32 | 16 / 32 | |
| RPM | 1000 | 1000 | 1000 | |
| 3-point hitch cat. | II / III | II | II / III | |
| Power demand [HP]* | from 150 | from 140 | from 160 | |
| Weight [kg] | 2210 | 2308 | 2330 | |
| Weight with "H" [kg] | 2120 | 2290 | 2260 | |
| PTO shaft | Tractor-mower: no clutch, built-in: with friction overruning clutch | Tractor-mower: no clutch, built-in: with friction overruning clutch | Tractor-mower: no clutch, built-in: with friction overruning clutch | |
| Ruber swath guide - single [pcs.] | 4 | - | 4 | |
H: Hydropneumatic suspension
* In combination with the front mower
| GigaCUT kit data (KDD with conditioner) | |||||
|---|---|---|---|---|---|
| Model | KDD 861 S(H)** | KDD 861 W(H)** | KDD 941 S(H)** | KDD 941 W(H)** | |
| Working width [m]* | 8,6 | 8,6 | 9,4 | 9,4 | |
| Transport width / height [m] | 3,00 / 3,80 | 3,00 / 3,80 | 3,00 / 3,95 | 3,00 / 3,95 | |
| Swath width [m] | 2x ~ 1,60 - 2,20 | 2x ~ 1,40 - 1,90 | 2x ~ 2,00 - 2,70 | 2x ~ 1,80 - 2,30 | |
| Necessary hydraulic couplers | 3x single acting (with panel 1x single acting) | 3x single acting (with panel 1x single acting) | 3x single acting (with panel 1x single acting) | 3x single acting (with panel 1x single acting) | |
| Working capacity [ha/h / ac/h]* | ~ 10,00 / ~ 25,00 | ~ 10,00 / ~ 25,00 | ~ 11,00 / ~ 27,00 | ~ 11,00 / ~ 27,00 | |
| Number of discs / Number of knives [pcs.] | 14 / 28 | 14 / 28 | 16 / 32 | 16 / 32 | |
| RPM | 1000 | 1000 | 1000 | 1000 | |
| 3-point hitch cat. | III | III | III | III | |
| Power demand [HP]* | from 180 | from 180 | from 200 | from 200 | |
| Weight [kg] | 3020 | 3130 | 3226 | 3320 | |
| "Weight with ""H"" [kg]" | 2870 | 2970 | 3130 | 3200 | |
| PTO shaft | Tractor-mower: no clutch, built-in: with overruning friction clutch | Tractor-mower: no clutch, built-in: with overruning friction clutch | Tractor-mower: no clutch, built-in: with overruning friction clutch | Tractor-mower: no clutch, built-in: with overruning friction clutch | |
| Ruber swath guide - single [pcs.] | Metal swath guides in conditioner | Metal swath guides in conditioner | Metal swath guides in conditioner | Metal swath guides in conditioner | |
H: Hydropneumatic suspension
* In combination with the front mower
** S: tine conditioner / W: roller conditioner
| GigaCUT kit data (KDD with conditioner) + conveyor belt | |||||
|---|---|---|---|---|---|
| Model | KDD 861 ST(H)** | KDD 861 WT(H)** | KDD 941 ST(H)** | KDD 941 WT(H)** | |
| Working width [m]* | 8,6 | 8,6 | 9,4 | 9,4 | |
| Transport width / height [m] | 3,00 / 3,80 | 3,00 / 3,80 | 3,00 / 3,95 | 3,00 / 3,95 | |
| Swath width [m] | 2x ~1,55 - 2,20 | 2x ~1,60 - 2,00 | 2x ~1,50 - 2,60 | 2x ~2,00 - 2,40 | |
| Necessary hydraulic couplers | 1x double acting | 1x double acting | 1x double acting | 1x double acting | |
| Working capacity [ha/h / ac/h]* | ~ 10,00 / ~ 25,00 | ~ 10,00 / ~ 25,00 | ~ 11,00 / ~ 27,00 | ~ 11,00 / ~ 27,00 | |
| Number of discs / Number of knives [pcs.] | 14 / 28 | 14 / 28 | 16 / 32 | 16 / 32 | |
| RPM | 1000 | 1000 | 1000 | 1000 | |
| 3-point hitch cat. | III | III | III | III | |
| Power demand [HP]* | from 200 | from 200 | from 220 | from 220 | |
| Weight [kg] | 4040 | 4160 | 4310 | 4450 | |
| Weight with "H" [kg] | 3900 | 3920 | 4100 | 4300 | |
| PTO shaft | Tractor-mower: no clutch, built-in: with overruning friction clutch | Tractor-mower: no clutch, built-in: with overruning friction clutch | Tractor-mower: no clutch, built-in: with overruning friction clutch | Tractor-mower: no clutch, built-in: with overruning friction clutch | |
| Ruber swath guide - single [pcs.] | Metal swath guides in conditioner | Metal swath guides in conditioner | Metal swath guides in conditioner | Metal swath guides in conditioner | |
H: Hydropneumatic suspension
* In combination with the front mower
** S: tine conditioner / W: roller conditioner
T: conveyor belt
